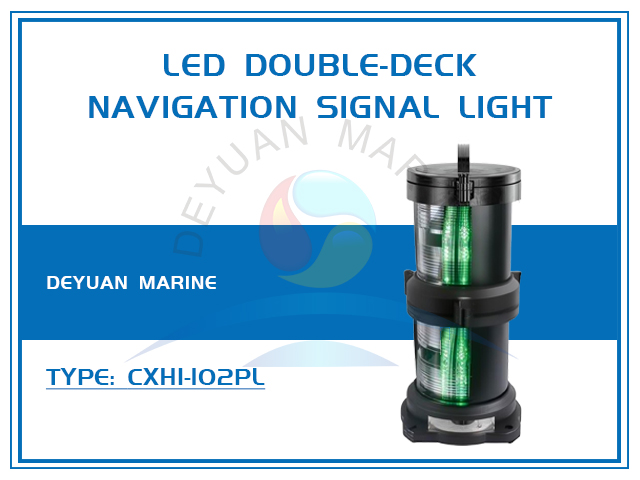

CXH1-102PL Ship LED Double-deck Navigation Signal Starboard Light For Sale

Share to:

CXH1-102PL Ship LED Double-deck Navigation Signal Starboard Light For Sale

Origin: Made in China
Type: Starboard light
Power: LED 2*6W
For boat: More than 50M
Lamp holder: P28S
Protection class: IP66
Color: White, red, yellow, green etc
Working temperature: -30℃to 50℃
Delivery time: 3-15days
Brand: Deyuan Marine

Brand:


Inquire Add to Basket

Product Description

Product Description

CXH1-102PL Ship LED Double-deck Navigation Signal Starboard Light For Sale

The scope of application:

Used for the ships with the length 50m or above 50m as lamp signal liaison when night navigation

Product characteristic:

1.The shell is made of high-strength engineering plastic PA+GF,the lampshade adopts injection of PC,lens hood adopts good quality stainless steel.

2.The signal lights have the whole seal structure,it is waterproof under the bad environment.

3.The connection of the signal light's lamp holder and the base adopt plug-in type,can replace the up and down bulb as open the cover.

4.The signal lights adopt the signal light’s bulb which conform to the ship norm,and average life is not lower than 700h

5.The signal lights can work normally under the temperature -30℃~55℃.

Adopt standard:

1.Conform to the international regulations for preventings collision at sea,1972 and Grade entry norms for steel ships

2.Confirm to the international standard IEC60598-1-2008

3.Confirm to the standard of marine electric signal light's technical condition GB/T3028-1995

Specification:

Navigation light
Name	Series	Material	Available Light	Application
Double-deck Navigation light	CXH101P	Shell:Engineering Plastic PA+GF Lampshade:PC Lens Hood:stainless steel	starboard light , port light, masthead light, stern light all-round light	Applied to the ship with the length 50M or above 50M as lamp signal liaison
	CXH-10P
	CXH-10S	Shell:Stainless steel Lampshade:PC
	CXH-10B
	CXH-20S	Shell:Stainless steel Lampshade:PC		Applied to the ship with the length 12M or above 12M(＜50M) as lamp signal liaison

Name/ Type	Visibility	Level arc	Color	Power	Weight
CXH1-102PL Starboard light	3n.m	112.5º	Green	2*6W	6.2kg
CXH2-102PL Port light	3n.m	112.5º	Red	2*6W	6.2kg
CXH3-102PL Masthead light	6n.m	225º	White	2*8W	6.2kg
CXH4-102PL Stern light	3n.m	135º	white/Yellow	2*6W	6.2kg
CXH6-102PL All-roung light	3n.m	360º	Red/Green/White	2*6W	6kg
