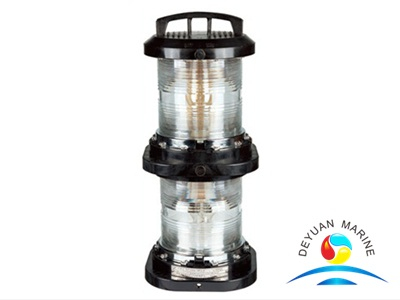

CXH-10P Marine Plastic Double Deck Navigation Signal All Round Light

Origin: Made in China
Power: 2*60W/2*65W
For boat: More than 50M
Lamp holder: B22d
Protection class: IP56
Color: White, red, yellow, green etc
Certificate: CCS
Delivery time: 3-15days
Brand: Deyuan Marine
Availability:

Product Description

CXH-10P Marine Plastic Double Deck Navigation Signal All Round Light


Application:
Applied to the ship with the length 50M or above 50M as lamp signal liaison.
Material:
Shell:Engineering Plastic PA+GF
Lampshade:PC
Lens Hood:stainless steel
Specification:

Navigation light
Name Series Material  Available Light  Application
Double-deck
Navigation light
CXH101P Shell:Engineering Plastic PA+GF
Lampshade:PC
Lens Hood:stainless steel
starboard light ,
port light,
masthead light,
stern light
all-round light
Applied to the ship with the
length 50M or above 50M as lamp signal liaison
CXH-10P
CXH-10S Shell:Stainless steel
Lampshade:PC

CXH-10B
CXH-20S Shell:Stainless steel
Lampshade:PC
Applied to the ship with the
length 12M or above 12M(<50M) as lamp signal liaison



Series: CXH-10P Double-deck navigation signal light
Name type Visibility Level arc Lamp holder Voltage/power Cable outside Diameter Protection class Color weight
Starboard light CXH1-10P 3n.m 112.5°  B22c 24V/2x60W
110V/2x65W
220V/2x65W

Φ12-Φ13
IP56 Green 3.8kg
Port light CXH2-10P 3n.m 112.5° Red 3.8kg
Masthead light CXH3-10P 6n.m 225° white 3.7kg
Stern light CXH4-10P 3n.m 135° white/yellow 3.7kg
All-round light CXH6-10P 3n.m 360° red/green/white 3.6kg
