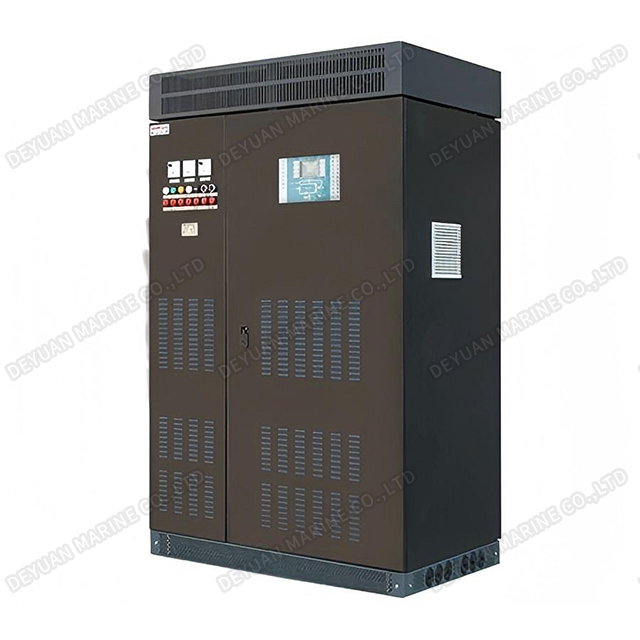

CUHD-D Series Marine UPS 3-input Single Output Power Supply
Features
This series of products meets the specifications and standards of domestic and international shipbuilding industry related electrical equipment.
Comprehensive protection functions: input undervoltage, overvoltage protection, output overvoltage protection, short circuit and overtemperature protection.
Multi-channel alarm passive dry contact output, can monitor all possible states during UPS operation.
Built-in voltage regulator and charging power modules are both CCS type approved, digital control, parallel design, convenient expansion.
Built-in independent voltage regulator and charging module, humanized battery maintenance: constant current equalization charging - constant voltage equalization charging - floating charge trickle charge three-stage automatic cycle, extending the service life of lead-acid batteries.
Positive maintenance design, testing, and maintenance are more convenient.
This series of products can provide full customization of functions, sizes, and installation methods.
The full range of DC UPS power supplies have been approved by China Classification Society.
Technical Parameters
| CUHD-A Series Marine UPS 3-input/1-output Power Supply Technical Parameters | ||||||||
| Model | 6KVA | 10KVA | 15KVA | 20KVA | 25KVA | 30KVA | 40KVA | |
| Capacity(KW) | 4.8KW | 8KW | 12KW | 16KW | 20KW | 24KW | 32KW | |
| Running Mode | Dual-inverting online type | |||||||
| Isolation method | Transformer isolation | |||||||
| Input | Rated Voltage | (110VAC/220VAC/380VAC/440VAC iptional)±20% | ||||||
| Rated Frequency | 50HZ/60HZ | |||||||
| Phase | 3phase | |||||||
| Bypass | Switching mode | Auto switching/Manual switching | ||||||
| Output | Phase | Single phase | ||||||
| Power factor | 0.8 | |||||||
| Voltage accuracy | (110VAC/220VAC/380VAC/440VAC optional)±2% | |||||||
| Overload capacity | When the rate is between 105% and 150%, it switches to bypass mode in 30 seconds; when the rate is >150%, it switches to bypass mode in 300 ms and alarms. | |||||||
| Output frequency | 50HZ/60HZ | |||||||
| Output waveform | Pure sine wave | |||||||
| Switching time | 0mS | |||||||
| Load peak ratio | 3:1 | |||||||
| Harmonic distortion | (Linear load ≤3%; non-linear load ≤5%) | |||||||
| Function | Protection | Input overvoltage, undervoltage, overheating, overcurrent, short circuit | ||||||
| Communication | Standard RS232, optional RS485, SNMP card | |||||||
| Dry contact | Main power supply, battery discharge, bypass power supply, battery low voltage, low insulation, ESD battery trip, UPS system failure, maintenance bypass, public alarm | |||||||
| Instrument | Output voltage, output current, output insulation instrument | |||||||
| Indication | Operating status indication, LCD display, audible and visual alarm, mute mode | |||||||
| Charging | Charging mode | First constant current, then constant voltage | ||||||
| Charging current | 0.1C～0.15C(Adjust according to the battery capacity setting) | |||||||
| Charging time | ≤10hour | |||||||
| Battery | Battery type | Sealed lead-acid maintenance-free battery | ||||||
| Battery voltage | 192VDC | 216VDC | ||||||
| Backup time | ≥30min(customizable) | |||||||
| Structure | Box size (W×D×H)mm | 650×700×2000 | 800×700×2000 | 800×800×2000 | ||||
| Wall mounted | External battery housing | |||||||
| Weight (KG) | 412 | 468 | 521 | 597 | 722 | 836 | 1013 | |
| Installation method | Floor type | |||||||
| Protection level | IP22/IP23/(IP44 customizable) | |||||||
| Box color | RAL7035(other color customizable) | |||||||
| Surrounding | Ambient tempt. | -0℃~+50℃ | ||||||
| Humidity | 0～95%(No condensation) | |||||||
| Cooling | Forced air cooling | |||||||
| Standards& Certificate | Stardards | IEC62040 IEC61000 IEC60068-2 CCS GD22-2015 | ||||||
| Certificate | Type approval of CCS | |||||||
| Selection instructions: Please refer to our "Power Supply Model Description" for detailed requirements for selection and ordering. If you need to expand functions or use it under capacitive load/inductive load conditions or customize it, please be sure to contact us first and indicate it on the order. | ||||||||
