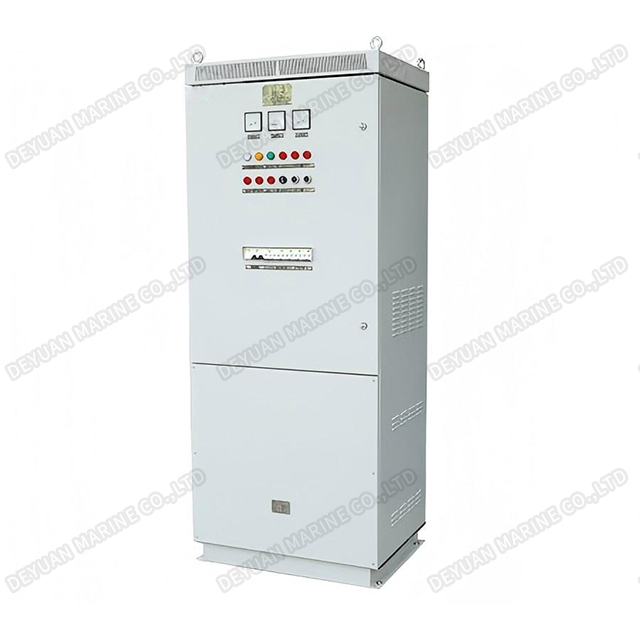

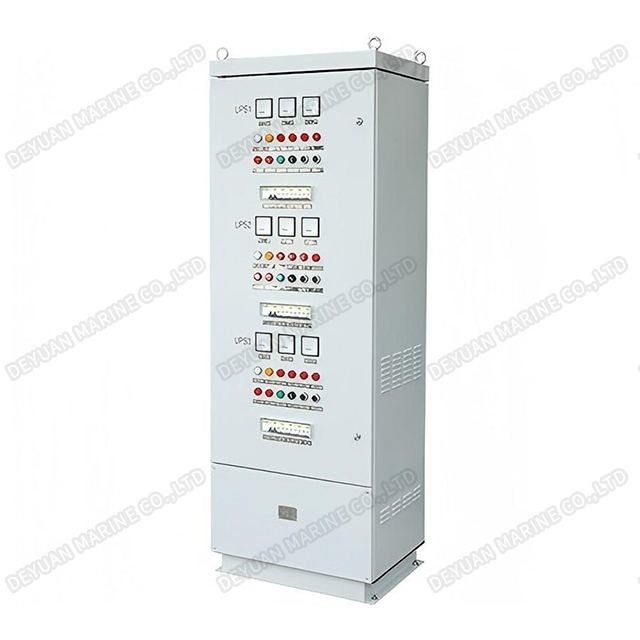

CUHD-D Series Marine DC Uninterruptible Power Supply
Features
This series of products meets the specifications and standards of domestic and international shipbuilding industry related electrical equipment.
Comprehensive protection functions: input undervoltage, overvoltage protection, output overvoltage protection, short circuit and overtemperature protection.
Multi-channel alarm passive dry contact output, can monitor all possible states during UPS operation.
Built-in voltage regulator and charging power modules are both CCS type approved, digital control, parallel design, convenient expansion.
Built-in independent voltage regulator and charging module, humanized battery maintenance: constant current equalization charging - constant voltage equalization charging - floating charge trickle charge three-stage automatic cycle, extending the service life of lead-acid batteries.
Positive maintenance design, testing, and maintenance are more convenient.
This series of products can provide full customization of functions, sizes, and installation methods.
The full range of DC UPS power supplies have been approved by China Classification Society.
Technical Parameters
| CUHD-D Series Marine DC Uninterruptible Power Supply Technical Parameters | |||||||||
| Capacity(KW) | 500W | 1KW | 1.5KW | 1.8KW | 2.4KW | 3.6KW | 4.8W | 6KW | |
| Input | Rated Voltage | Single 220VAC/3Phase 380VAC/440VAC±20% | |||||||
| Range | ±20% | ||||||||
| Frequency | 45~65Hz | ||||||||
| Output | Voltage | 24VDC/12VDC/48VDC/110VDC/220VDC option | |||||||
| Voltage Accuracy | ±1% | ||||||||
| Switching time | 0mS | ||||||||
| Function | Protection | Input overvoltage, undervoltage, overheating, overcurrent, short circuit,overheat protection | |||||||
| Dry contact | Main power failure, battery discharge, low insulation, charger failure, rectifier failure, battery low voltage, battery switch trip, public alarm | ||||||||
| Instrument | Output voltage, output current, output insulation instrument | ||||||||
| Indication | Operating status indication,audible and visual alarm, mute mode | ||||||||
| Charging | Charging mode | First constant current, then constant voltage | |||||||
| Charging current | 0.1C～0.15C(Adjust according to the battery capacity setting) | ||||||||
| Charging time | ≤10hour | ||||||||
| Battery | Battery type | Sealed lead-acid maintenance-free battery | |||||||
| Battery voltage | 24VDC/12VDC/48VDC/110VDC/220VDC option | ||||||||
| Backup time | ≥30min(customizable) | ||||||||
| Capacity | 33AH | 65AH | 80AH | 100AH | 150AH | 200AH | 300AH | 400AH | |
| Structure | Size(internal battery) | 600×350×700 | 600×350×1200 | 650×450×1300 | 700×500×1300 | 700×600×1300 | 700×500×1600 | 700×600×1600 | |
| Size(external battery) | / | 600×350×1000 | 650×400×1000 | 700×400×1000 | |||||
| Weight(external battery) | 35 | 150 | 171 | 236 | 288 | 382 | 462 | ||
| Weight(internal battery) | / | 98 | 108 | 121 | |||||
| Installation method | Wall mounted | Floor type(Wall mounted optional) | |||||||
| Protection level | IP22/IP23/(IP44 customizable) | ||||||||
| Box color | RAL7035(other color customizable) | ||||||||
| Surrounding | Ambient tempt. | -0℃~50℃ | |||||||
| Humidity | 0～95%(No condensation) | ||||||||
| Cooling | Forced air cooling | ||||||||
| Standards& Certificate | Stardards | IEC62040 IEC61000 IEC60068-2 CCS GD22-2015 | |||||||
| Certificate | Type approval of CCS | ||||||||
| Selection instructions: Please refer to our "Power Supply Model Description" for detailed requirements for selection and ordering. If you need to expand functions or use it under capacitive load/inductive load conditions or customize it, please be sure to contact us first and indicate it on the order. | |||||||||
