Product Description

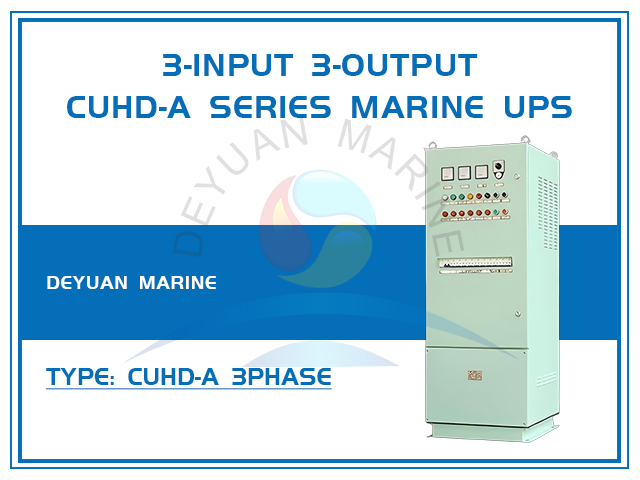

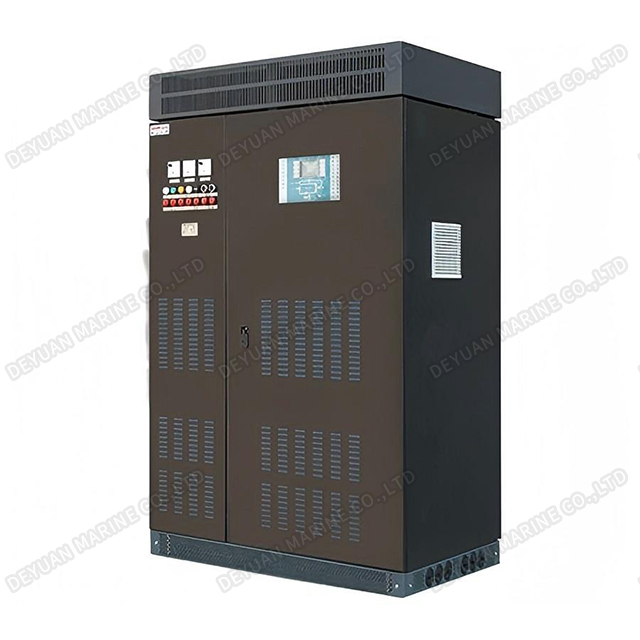

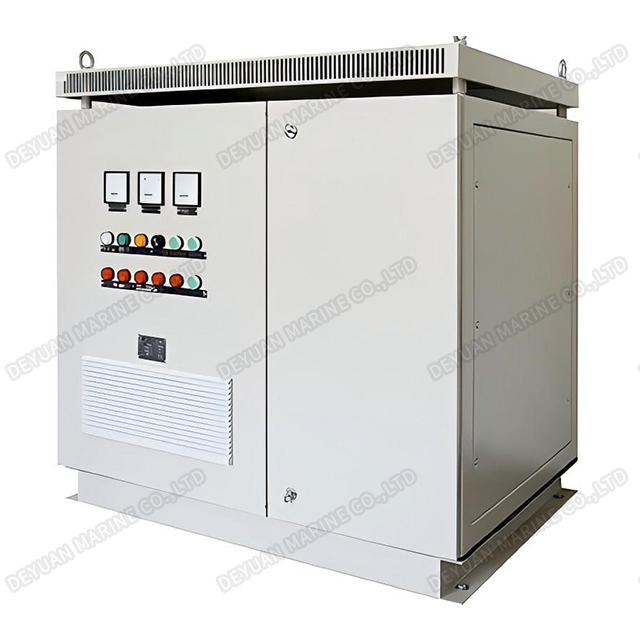

CUHD-A Series Marine UPS 3-input/3-output Power Supply
Features
This series of products complies with the specifications and standards of domestic and international shipbuilding industry related electrical equipment.
Online double conversion design provides excellent power supply quality and protection for the load.
DSP digital control technology is adopted, with fast control response speed and high reliability.
Built-in isolation transformer design, strong impact resistance, can effectively suppress high-frequency noise, ensure reliable operation of the load; isolate dangerous voltage to ensure personnel safety.
The structure adopts front airflow and top airflow, front maintenance design, and testing and maintenance are more convenient.
Intelligent heat dissipation design: The fan automatically matches the speed with the load size, effectively reduces noise, and prolongs the service life of the fan.
Multi-channel passive dry contact output can monitor all possible states during UPS operation.
All-round protection function: with input over-voltage and under-voltage, phase loss, output overload, short circuit, battery over-voltage and under-voltage, over-temperature and other protection functions.
Rich intelligent communication interfaces: RS232, RS485, SNMP intelligent slot.
This series of products can provide full customization of functions, sizes, and installation methods.
The entire series of AC UPS power supplies have been type approved by China Classification Society.
Technical Parameters
| CUHD-A Series Marine UPS 3-input/3-output Power Supply Technical Parameters | |||||||||||||
| Model | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 50KVA | 60KVA | 80KVA | 100KVA | 120KVA | 160KVA | 200KVA | |
| Capacity(KW) | 8KW | 12KW | 16KW | 24KW | 32KW | 40KW | 48KW | 64KW | 80KW | 96KW | 128KW | 160KW | |
| Running Mode | Dual-inverting online type | ||||||||||||
| Isolation method | Transformer isolation | ||||||||||||
| Input | Rated Voltage | (110VAC/220VAC/380VAC/440VAC iptional)±20% | |||||||||||
| Rated Frequency | 50HZ/60HZ | ||||||||||||
| Phase | 3phase | ||||||||||||
| Bypass | Switching mode | Auto switching/Manual switching | |||||||||||
| Output | Phase | 3phase | |||||||||||
| Power factor | 0.8 | ||||||||||||
| Voltage accuracy | (110VAC/220VAC/380VAC/440VAC optional)±2% | ||||||||||||
| Overload capacity | When the rate is between 105% and 150%, it switches to bypass mode in 30 seconds; when the rate is >150%, it switches to bypass mode in 300 ms and alarms. | ||||||||||||
| Output frequency | 50HZ/60HZ | ||||||||||||
| Output waveform | Pure sine wave | ||||||||||||
| Switching time | 0mS | ||||||||||||
| Load peak ratio | 3:1 | ||||||||||||
| Harmonic distortion | (Linear load ≤3%; non-linear load ≤5%) | ||||||||||||
| Function | Protection | Input overvoltage, undervoltage, overheating, overcurrent, short circuit | |||||||||||
| Communication | Standard RS232, optional RS485, SNMP card | ||||||||||||
| Dry contact | Main power supply, battery discharge, bypass power supply, battery low voltage, low insulation, ESD battery trip, UPS system failure, maintenance bypass, public alarm | ||||||||||||
| Instrument | Output voltage, output current, output insulation instrument | ||||||||||||
| Indication | Operating status indication, LCD display, audible and visual alarm, mute mode | ||||||||||||
| Charging | Charging mode | First constant current, then constant voltage | |||||||||||
| Charging current | 0.1C～0.15C(Adjust according to the battery capacity setting) | ||||||||||||
| Charging time | ≤10hour | ||||||||||||
| Battery | Battery type | Sealed lead-acid maintenance-free battery | |||||||||||
| Battery voltage | 384VDC | ||||||||||||
| Backup time | ≥30min(customizable) | ||||||||||||
| Structure | Box size (W×D×H)mm | 800×800×2200 | 1200×800×2200 | 1600×800×2200 | 1600×1100×2200 | ||||||||
| External battery housing | |||||||||||||
| Weight (KG) | 412 | 468 | 521 | 597 | 722 | 836 | 1013 | 1140 | 1305 | 1570 | 1930 | 2265 | |
| Installation method | Floor type | ||||||||||||
| Protection level | IP22/IP23/(IP44 customizable) | ||||||||||||
| Box color | RAL7035(other color customizable) | ||||||||||||
| Surrounding | Ambient tempt. | -0℃~+50℃ | |||||||||||
| Humidity | 0～95%(No condensation) | ||||||||||||
| Cooling | Forced air cooling | ||||||||||||
| Standards& Certificate | Stardards | IEC62040 IEC61000 IEC60068-2 CCS GD22-2015 | |||||||||||
| Certificate | Type approval of CCS | ||||||||||||
| Selection instructions: Please refer to our "Power Supply Model Description" for detailed requirements for selection and ordering. If you need to expand functions or use it under capacitive load/inductive load conditions or customize it, please be sure to contact us first and indicate it on the order. | |||||||||||||
