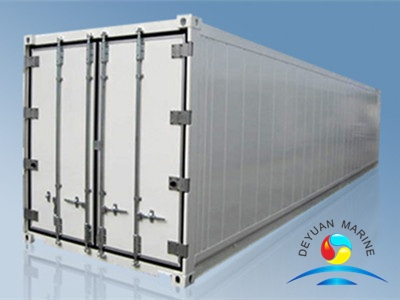

40ft Ultra-Liner Reefer Container

Reefer Container Feature:

1.The frame structure is firstly used weather resistance high strength steel, with the same weather resistance performance with CORTEN, however 1.5 times strength.

2.High performance FRP liner + extrusion AL scuff liner.

3.No solid rivet door panel.

40ft	Dimensions	MM	FT – IN
External	Length	12,192	40'
	Width	2,438	8'
	Height	2,591	8'-6"
Internal	Length	11,596	38'-1 9/64"
	Width	2,312	7'-7 1/32"
	Height	2,267	7'-5 1/4"
Door Opening	Width	2,292	7'-6 15/64"
	Height	2,284	7'-5 59/64"
Inside Cubic Capacity		CU.M	CU.FT
		60.9	2,150
		KG	LBS
Maximum Gross Weight		30,500	67,240
Tare Weight		3,890	8,580
Maximum Payload		26,610	58,660
Allowable Stacking Weight (1.8G)		192,000	423,290
