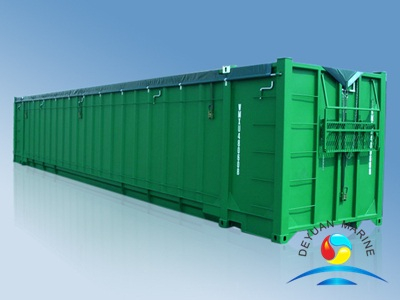

48' Open Top Waste Container (Soft Roof)

1.Rear frame fitted with a removable door header and a door panel openned to one side.

2.Only one top crossmember at the center of container.

3.Tarpaulin will be fixed by one anchor pipe on right side and tightened by patch holder on another side, rolled up with one pipe when opening.

4.One folding platform and ladders are fixed on front end frame.

5.Special bottom side rails.

48'	Dimensions	MM	FT – IN
External	Length	14,630	48’
	Width	2,438	8'
	Height	2,591	8’- 6"
Internal	Length	14,450.80	47'-4 15/16"
	Width	2278	7'-5 11/16"
	Height	2330	7'-7 23/32"
Door Opening	Width	2,278	7'-5 11/16"
	Height	2,284	7'-5 29/32"
Roof Opening	Length	14,094	46'-2 7/8"
	Width	2,168	7'-1 3/8"
		CU.M	CU.FT
CUBIC CAPACITY		77.4	2,734
		KG	LBS
Maximum Gross Weight		36,500	80,470
Tare Weight		7,230	15,940
Maximum Payload		29,270	64,530
Allowable Stacking		192,000	423,280
