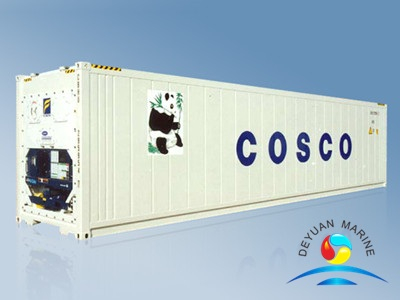

40ft Standard Reefer Container

40HC standard steel reefer container, with high strength, good looking, and easy to repair, is suitable for maintain, road and rail transportation.

Its structure characteristics are as follows:

1.Steel reefer structure, MGSS outer panels, SUS304 side & door lining, Pre-painted AL sheet;

2.Corrugation base panel, one piece gooseneck tunnel and extrusion AL T-floor;

3.Two pieces rear door, no solid rivet door panel.

40ft	Dimensions	MM	FT – IN
External	Length	12,192	40'
	Width	2,438	8'
	Height	2,896	9'-6"
Internal	Length	11,590	38'-   19/64"
	Width	2,294	7'-6 5/16"
	Height	2,554	8'-4 35/64"
Door Opening	Width	2,290	7'-6 5/32"
	Height	2,569	8'-5 9/64"
Inside Cubic Capacity		CU.M	CU.FT
		67.9	2,398
		KG	LBS
Maximum Gross Weight		34,000	74,960
Tare Weight		4,560	10,050
Maximum Payload		29,440	64,910
Allowable Stacking Weight (1.8G)		216,000	476,200
