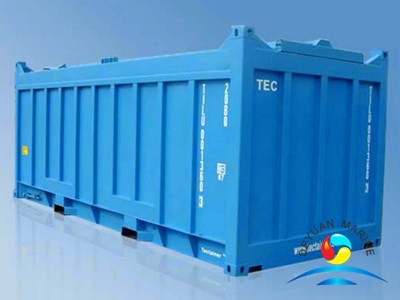

20' Open-top Dry Bulk Container (Hard Roof)
1.Roof loading hatches are provided.
2.Roof loading hatches can be opened as large as possible to right-hand/left-hand side of the container according to requirements.
3.Roof loading haches are pneumatically operated.
4.Hinged tailgate discharge hatch is provided at rear end door panel.
| 20' | Dimensions | MM | FT – IN |
| External | Length | 6,058 | 19’-10 1/2” |
| Width | 2,438 | 8' |
| Height | 2,438 | 8' |
| Internal | Length | 5,866 | 19'-2 15/16" |
| Width | 2,296 | 7' -6 25/64" |
| Height | 1,865.50 | 6'-1 7/16" |
| Door Opening | Width | 2,278 | 7'-5 11/16" |
| Height | 1,700 | 5'-6 15/16" |
| CUBIC CAPACITY | CU.M | CU.FT |
| 25.12 | 887 |
| KG | LBS |
| Maximum Gross Weight | 30,480 | 67,200 |
| Tare Weight | 3,660 | 8,070 |
| Maximum Payload | 26,820 | 59,130 |
| Allowable Stacking | 243,840 | 537,570 |
More 20' open-top dry bulk container (hard roof) can be offered,pls contact us for more details.
