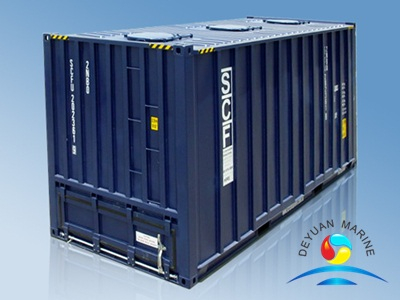

20' HC Palletwide Dry Bulk Container

  • Deyuan Marine

Product Description

20' HC Palletwide Dry Bulk Container
1.Equipped with three manholes on the roof to load bulk from above;
2.Provided a hatch on the front wall to unload bulk;
3.Equipped with a pair of rear door leaves like general dry cargo containers;
4.Attached one hatch on each rear door to balance the pressure inside the container when unloading dry bulk goods;
5.Nested a number of rotatable lashing rings in both side walls to secure goods when the container used as a dry cargo container, and fixed several bag suspending rings beneath the roof and alongside the both top side rails;
6.Flat steel floor and side walls to smooth bulk unloading;
7.Equipped with a pair of forklift pockets.
20' HC Dimensions MM FT – IN
External Length 6,058 19'-10 1/2"
Width 2,502 8'-2 1/2"
Height 2,896 9' -6"
Internal Length 5,900 19' -4 5/16"
Width 2,400 7'-10 31/64"
Height 2,665 8'-8 59/64"
Door Opening Width 2,340 7' -8 1/8"
Height 2,587 8'-5 27/32"
Front Hatch Opening Width 2,012 6' -7 7/32"
Height 500 1'-7 11/16"
Rear Hatch Opening Width 300 11 13/16"
Height 500 1'-7 11/16"
Manhole Opening Diameter Φ595 φ1' -11 27/64"

CU.M CU.FT
Inside Cubic Capacity 37.6 1,328

KG LBS
Maximum Gross Weight 32,650 71,985
Tare Weight 3,075 6,780
Maximum Payload 29,575 65,205
Allowable Stacking Weight (1.8G) 195,900     431,910
More 20' HC palletwide dry bulk container can be offered,pls contact us for more details.
