ZYG Series Marine Combination Pressure Water Tank

  • DEYUAN MARINE
Availability:

Product Description

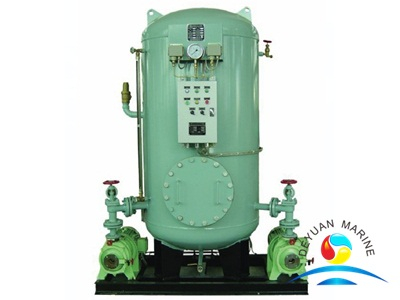

ZYG Series Marine Combination Pressure Water Tank:

This series of pressure water tank is suitable for ship fresh water pipes and sea water pipes,

pumps;pressure swith,electric control box and hydrophone are installed together.

It is compact and beautiful appearance.easy to install and maintain,

and it is an ideal unit for water supply system.

Main technical requirements:

Model

                ZYG Series

0.12

0.2

0.3

0.5

1

1.5

2

Volume(m3)

0.12

0.2

0.3

0.5

1

1.5

2

Working pressure(MPa)

0.4

Design pressure (MPa)

0.44

Test pressure (MPa)

0.66

Take-off pressure of safety valve(MPa)

0.42

Working temperature(℃)

0~45

Design temperature(℃)

50

Water pump

Model

1.5CWX-1.5/1.5A

1.5CWX-2/2A

1.5CWX-3/3A

Flow rate(m3/h)

3

6.5

10

Pumping head (m)

40

40

40

Power(kW)

2.2

3

4
