Product Description

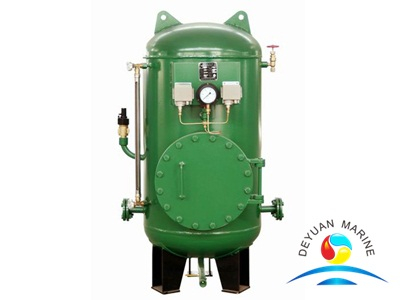

YLG Series Marine Pressure Water Tank:
Application:The pressure water tank can be used to provide fresh water for living and cleaning
of ship and Drilling platforms.
Principle Description:
This device uses pressured water by pump produced by shipyard,to compress the air inside of tank,
in order to maintain the water in cabinet body under a suitable air pressure.So as to provide
fresh water to the crews.
Main technical requirements:
| Marine Pressure Water Tank Type | YLG Series |
| Volume | 0.12-3.0m3 |
| Working pressure | 0.6MPa |
| Design pressure | 0.7MPa |
| Strength test pressure | 1.05MPa |
| Air tightness test pressure | 0.875MPa |
| Open pressure of safety valve | 0.63MPa |
| Working temperature | 0~45℃ |
| Design temperature | 50℃ |
