Product Description

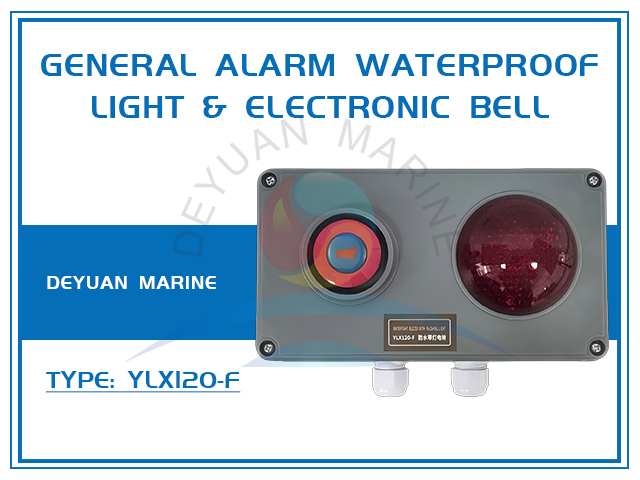

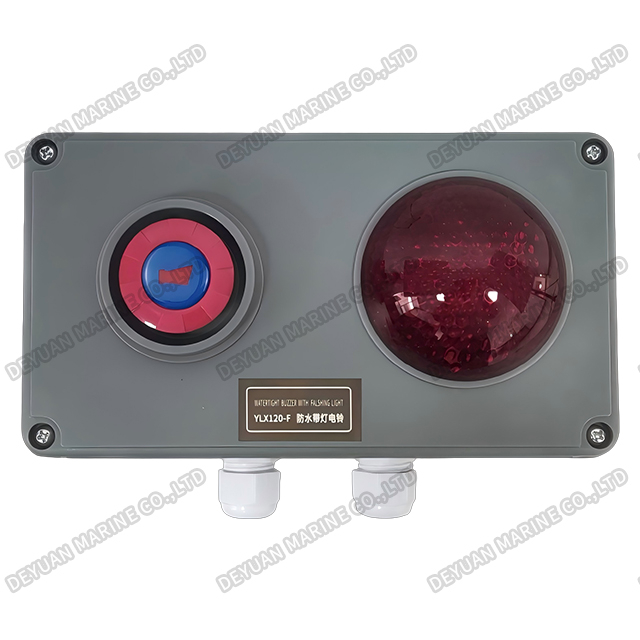

YLX120-F General Alarm Waterproof Light &Electronic Bell
Product Introduction
The Marine Waterproof General Alarm Beacon Bell is an integrated, high-visibility emergency signaling device designed for critical alarm applications in the harshest maritime environments. Combining a powerful electronic sounder with a high-intensity strobe light in a single, sealed unit, it provides simultaneous audible and visual alerts to ensure maximum crew awareness during general emergency, fire, or abandon ship situations.
Engineered for durability and reliability, this unit features a fully sealed, corrosion-resistant housing constructed from marine-grade materials such as die-cast aluminum or reinforced polycarbonate, achieving a high ingress protection rating (typically IP66/IP67 or higher). This waterproof and dustproof design guarantees uninterrupted operation when exposed to heavy rain, salt spray, hose-down cleaning, or extreme humidity.
Upon alarm activation, the electronic sounder emits a loud, penetrating, and SOLAS-compliant continuous ringing tone (or other programmable patterns), while the integrated multi-LED strobe beacon produces brilliant, eye-catching flashes—usually in high-contrast red or amber. This dual sensory output ensures the alarm is noticed in noisy engine rooms, dimly lit passageways, or crowded deck areas, even by individuals with hearing or visual impairments.
Suitable for installation on open decks, bridge wings, machinery spaces, and other exposed locations, this beacon bell simplifies system design and wiring by combining two essential alarm functions into one robust device. It operates on standard marine DC voltages (e.g., 24VDC) and is designed for easy mounting and low maintenance. As a vital component of a vessel’s safety system, it helps ensure compliance with international regulations while enhancing onboard emergency response readiness.

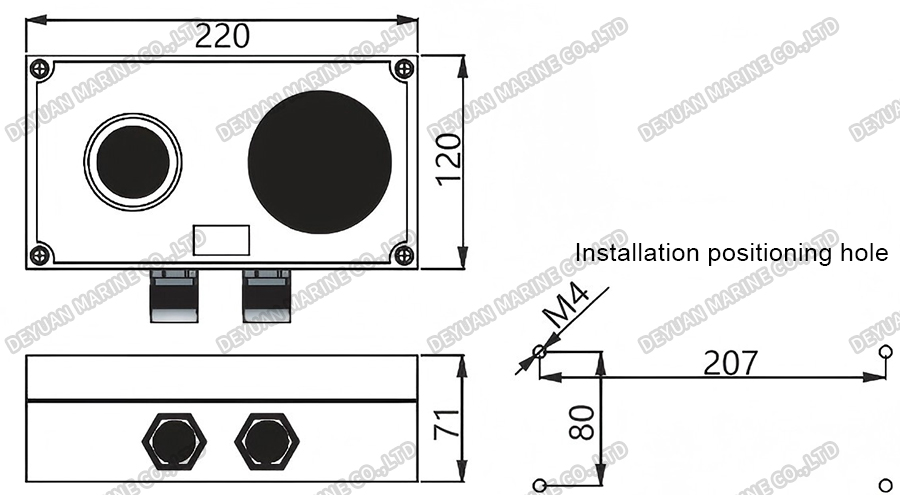

Drawing
General Emergency Alarm System
General Emergency Alarm System Connection Diagram
