DF-8R Fuse Junction Box For General Emergency Alarm System

DF-8R Fuse Junction Box For General Emergency Alarm System

Product Introduction

The Marine DF-8R Fuse Junction Box is a robust and critical component designed for the safe, organized, and reliable distribution of electrical power within a vessel's alarm and monitoring circuits. Serving as a centralized protective hub, it consolidates and safeguards the electrical connections feeding various remote alarm stations, sensors, and annunciator panels, such as those in a comprehensive fire or general alarm system.

Engineered specifically for the harsh marine environment, the DF-8R features a durable, corrosion-resistant enclosure, typically made from marine-grade aluminum or coated steel, offering a high degree of protection (IP rating) against moisture, salt spray, and dust. Its primary function is to house and provide easy access to a bank of fuses (or circuit breakers), each protecting a dedicated branch circuit. This design ensures that a fault in one circuit—such as a short circuit or overload—will isolate and de-energize only that specific branch by blowing its fuse, preventing damage to connected equipment and, most importantly, avoiding a total system failure.

Key design elements include a clear, hinged cover for security and protection, transparent fuse holders or windows for at-a-glance visual inspection of fuse status, and clearly labeled terminals for straightforward installation, tracing, and maintenance. The internal layout is logical, with ample space for secure wire connections, promoting good electrical practice and reducing the risk of loose connections or corrosion-related failures.

By centralizing circuit protection, the DF-8R Fuse Junction Box enhances system reliability, simplifies troubleshooting, and ensures compliance with marine electrical safety standards. It is an indispensable element in maintaining the integrity and immediate readiness of a vessel's critical alarm and safety networks.

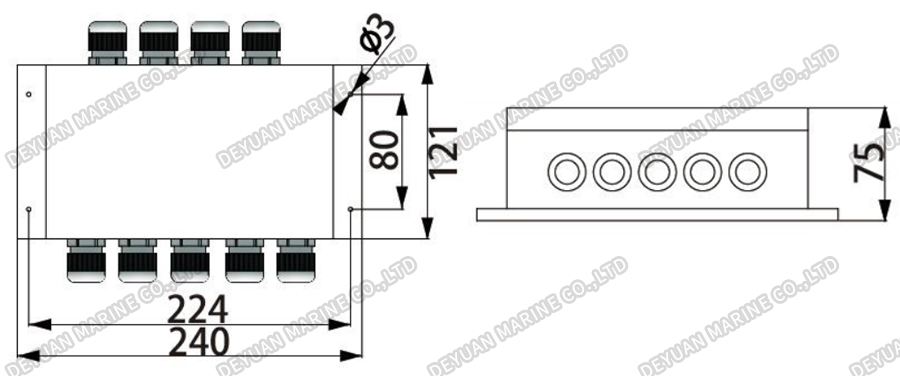

Drawing

General Emergency Alarm System

General Emergency Alarm System Connection Diagram
