Product Description

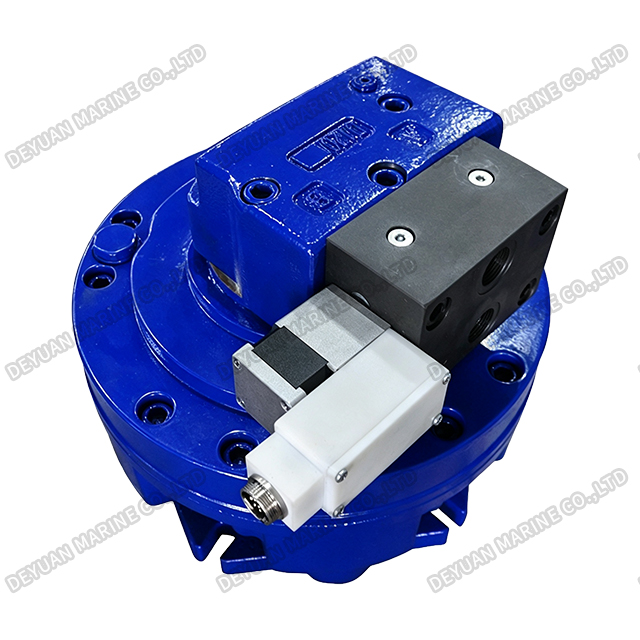

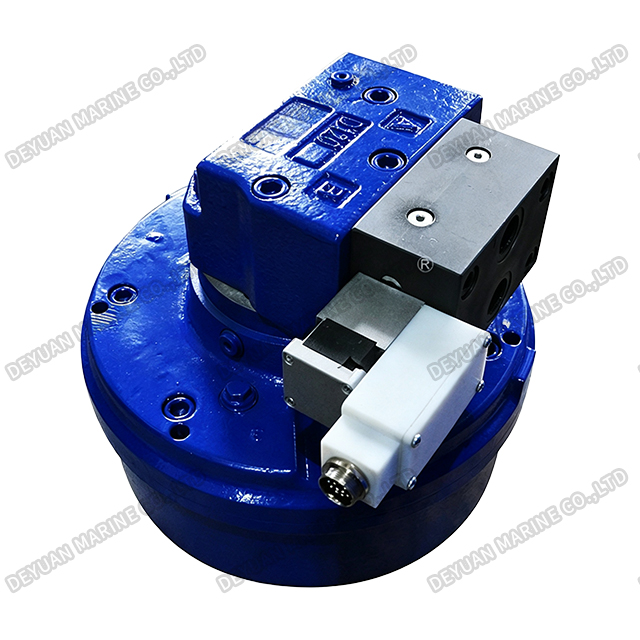

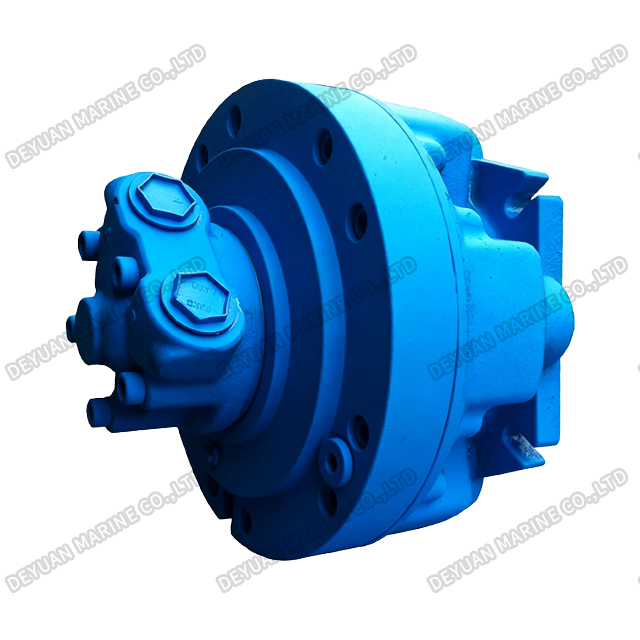

XHBD Series Hydraulic Motor
Product Introduction:
The XHBD Series Hydraulic Motor (comprising models XHBD1, XHBD2, and XHBD3) represents a new generation of five-cylinder radial piston hydraulic motors. Built upon the proven high-performance and reliable components of the XHS series, the XHBD series introduces an innovative intermediate sliding bearing design, utilizing new materials and the latest processing technology to significantly expand the product's capabilities.
Unlike traditional fixed-displacement motors, the XHBD series features variable displacement achieved by changing the eccentricity of the motor's crankshaft. This allows for dynamic or static adjustment from high to low displacement (and vice versa) via an external low-voltage control signal. Furthermore, XHBD motors are equipped with tapered roller bearings to withstand axial loads, and a balanced block is installed in the hollow output shaft to reduce high-speed vibration. This design greatly enhances radial load-carrying capacity.
The series offers a wide displacement range (from 49.3 ml/r up to 916 ml/r) and is capable of delivering high starting torque, stable low-speed operation, and high mechanical efficiency in both high and low displacement modes. The maximum speed is determined by the oil flow supplied to the motor. Additionally, the XHBD series includes a dual-speed motor (a first for domestic production, successfully declared for a national invention patent), with main parts processed on a five-axis machining center for precision. (Note: BD series motors do not allow a free-wheel/hole mode).

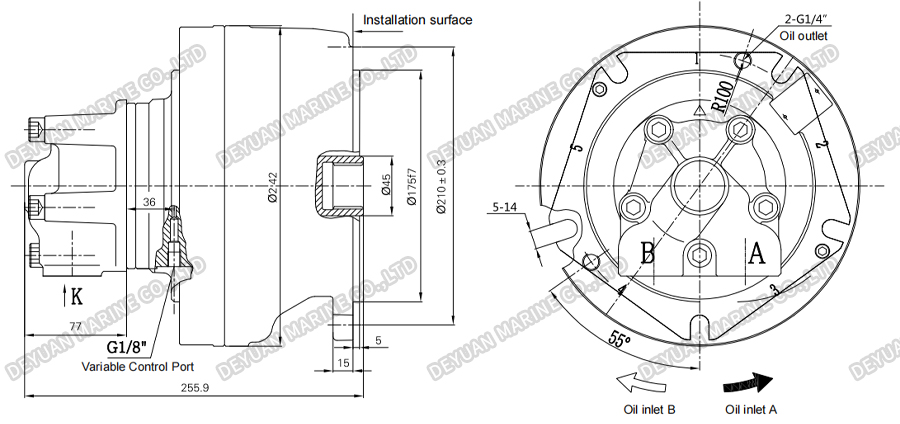

Outline Dimension Drawing:

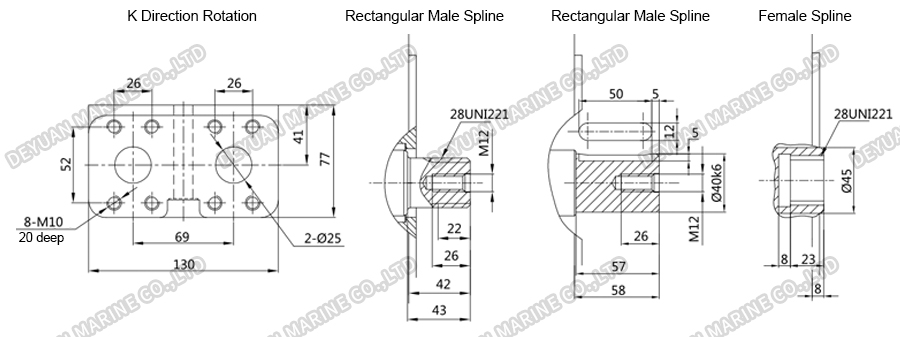

Shaft Extension Type:

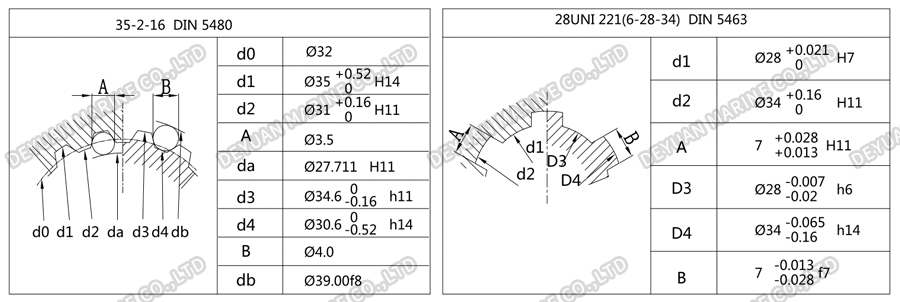

Spline Parameters:
Note: The above is the outline drawing of the XHBD1 hydraulic motor. If you need to view drawings for other models, please contact our sales team.
Technical Specifications:
| XHBD1 Model | ||||||||||||||||||
| Parameter | 100 | 175 | 250 | |||||||||||||||
| Theoretical Displacement(ml/r) | 99 | 25 | 172 | 43 | 243 | 60 | ||||||||||||
| Theoretical unit torque(N.m/MPa) | 15.4 | 9.3 | 26.8 | 6.7 | 37.9 | 9.5 | ||||||||||||
| Rated Pressure(MPa) | 30 | 26.5 | 25 | |||||||||||||||
| Max Pressure(MPa) | 42.5 | 40 | 37.5 | |||||||||||||||
| Max.Rotation Rate(RPM) | 1500 | 3500 | 1000 | 3000 | 850 | 2500 | ||||||||||||
| Max Power(Kw) | 55 | 42 | 55 | 55 | 55 | 55 | ||||||||||||
| XHBD2 Model | ||||||||||||||||||
| Parameter | 500 | 350 | 250 | |||||||||||||||
| Theoretical Displacement(ml/r) | 493 | 247 | 493 | 160 | 493 | 121 | 347 | 173 | 347 | 113 | 347 | 87 | 251 | 126 | 251 | 82 | 251 | 63 |
| Theoretical unit torque(N.m/MPa) | 76.9 | 38.5 | 76.9 | 25.5 | 76.9 | 19.2 | 54.2 | 27 | 54.2 | 18 | 54.2 | 13.6 | 39.2 | 19.7 | 39.2 | 13 | 39.2 | 9.8 |
| Rated Pressure(MPa) | 25 | 25 | 25 | |||||||||||||||
| Max Pressure(MPa) | 35 | 37.5 | 42.5 | |||||||||||||||
| Max.Rotation Rate(RPM) | 800 | 1600 | 800 | 2000 | 800 | 2200 | 1000 | 1800 | 1000 | 2000 | 1000 | 2200 | 1000 | 1800 | 1000 | 2000 | 800 | 2400 |
| Max Power(Kw) | 75 | 65 | 75 | 65 | 75 | 65 | 75 | 65 | 75 | 65 | 75 | 65 | 70 | 60 | 70 | 60 | 70 | 60 |
| XHBD3 Model | ||||||||||||||||||
| Parameter | 600 | 800 | 900 | |||||||||||||||
| Theoretical Displacement(ml/r) | 640 | 221 | 810 | 280 | 916 | 317 | ||||||||||||
| Theoretical unit torque(N.m/MPa) | 102 | 35 | 129 | 45 | 146 | 50.5 | ||||||||||||
| Rated Pressure(MPa) | 25 | 25 | 25 | |||||||||||||||
| Max Pressure(MPa) | 40 | 37.5 | 35 | |||||||||||||||
| Max.Rotation Rate(RPM) | 800 | 1600 | 700 | 1400 | 600 | 1200 | ||||||||||||
| Max Power(Kw) | 100 | 80 | 100 | 80 | 100 | 80 | ||||||||||||
Key Features:
1.Variable Displacement & Dual Speed: Adjusts displacement by changing motor eccentricity via low-pressure control signals. Offers dual-speed functionality for flexible operation.
2.Advanced Bearing & Shaft Design: Tapered roller bearings handle axial loads, while an integrated balanced block minimizes high-speed vibration and enhances radial load capacity.
3.Superior Starting & Low-Speed Performance: Extremely low friction coefficient on the sliding bearings ensures high starting torque and stable low-speed output without crawling or fluctuation.
4.High Efficiency: Maintains high mechanical efficiency regardless of whether it is operating in high or low displacement.
5.Robust Manufacturing: Main components are imported and processed via five-axis machining centers, ensuring high precision and reliability.
Applicable Range of Products:
*Injection molding machine.
*Light industry machine.
*Construction equipment.
*Metallurgical machine.
*Petroleum equipment.
*Mining equipment.
*Geological prospecting equipment.
*Railway equipment.
*Barges equipment.
*Environmental protection equipment.
*Machine tool.
*Farm machinery.
