Crankshaft Connecting Rod Type High-Torque Hydraulic Motor

Crankshaft Connecting Rod Type High-Torque Hydraulic Motor

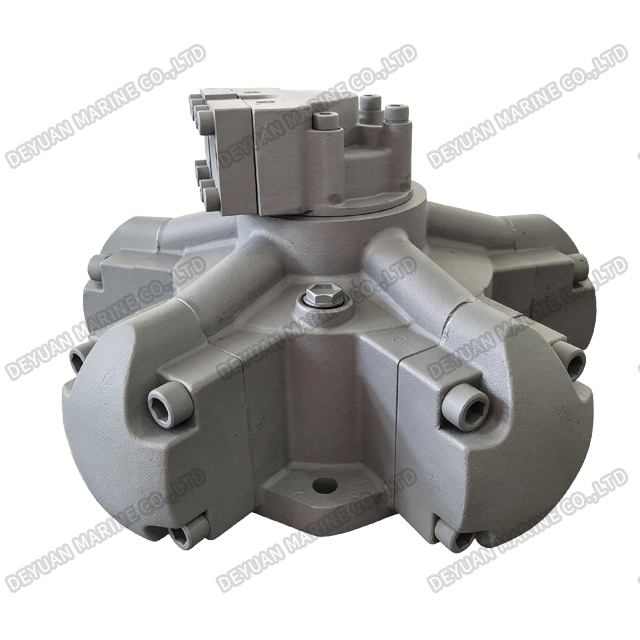

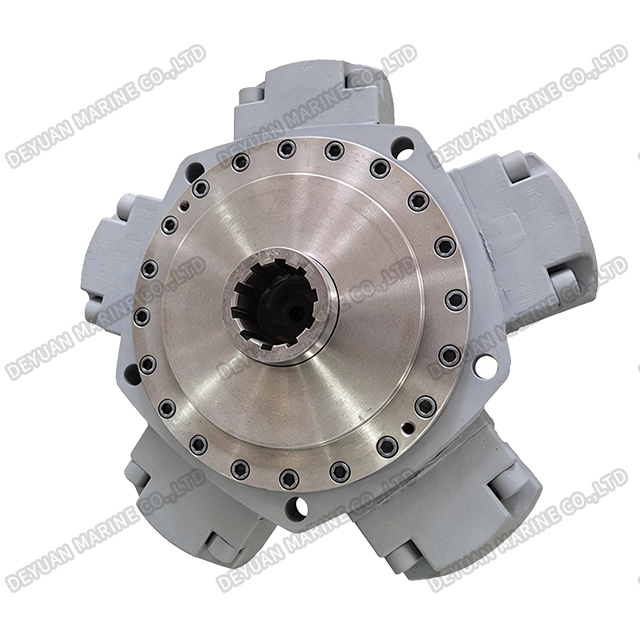

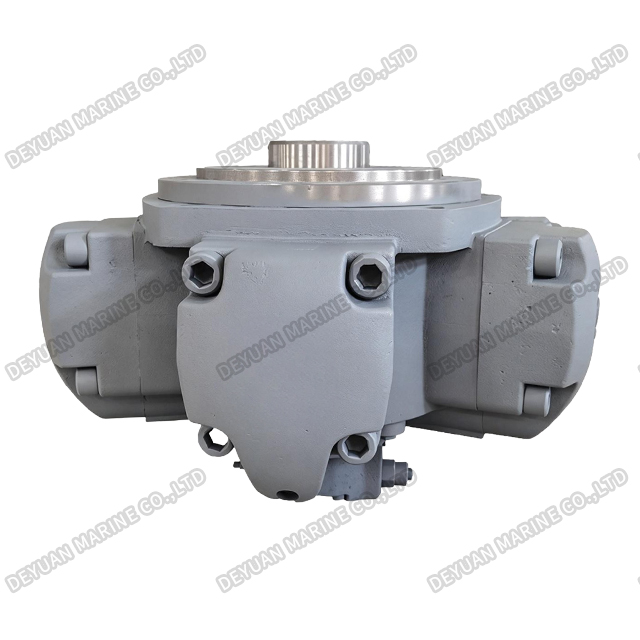

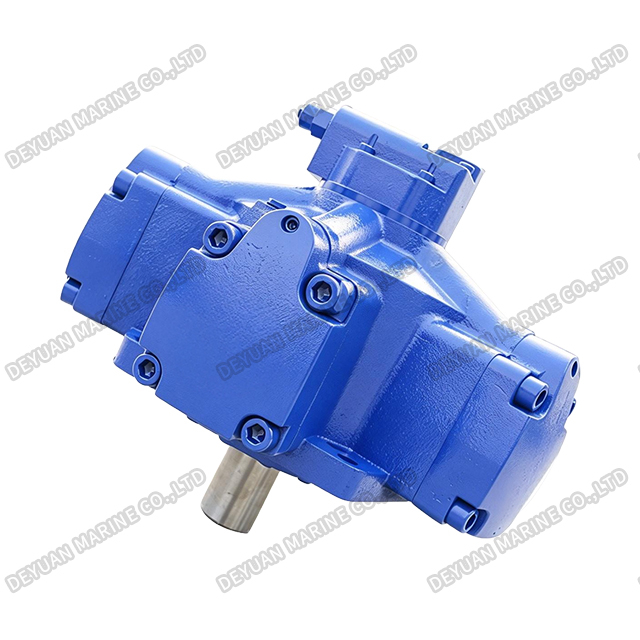

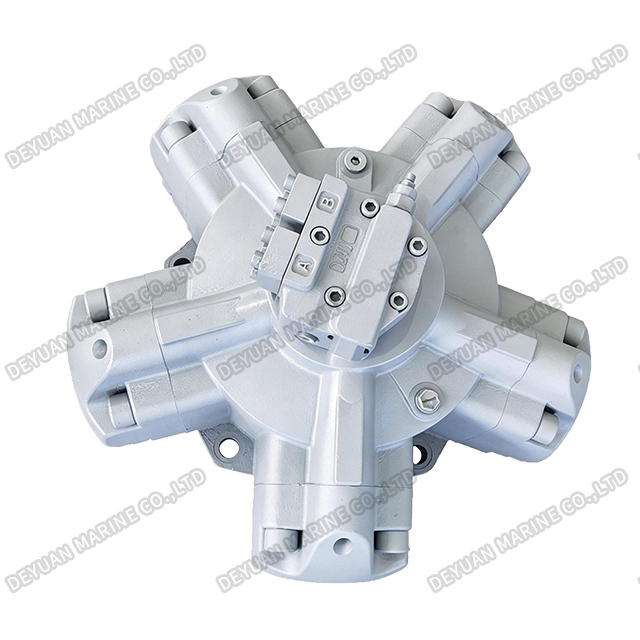

Product Introduction:

The XHM Series is a comprehensive line of Crankshaft Connecting Rod Type Low-Speed High-Torque Hydraulic Motors. Integrating the XHM16, XHM31, XHM40, and XHM100 families, this series is engineered to deliver exceptional power density and reliable performance for the most demanding heavy-duty industrial applications.

Key Features & Configurations：

1.Wide Displacement Range: The series covers a broad theoretical displacement from 1413 ml/r (XHM16) up to 9982 ml/r (XHM100), providing flexible speed and torque matching for various system requirements.

2.Robust Performance: Depending on the specific model, the motors deliver a rated pressure of 16 to 25 MPa,  and a rated torque ranging from 4,500 N.m to an impressive 25,550 N.m. Maximum power output ranges from 95 Kw to 120 Kw.

3.Versatile Distributor Plates: The motors are equipped with different distributor plate options (D47, D90, and D250) to suit specific flow requirements and installation dimensions.

4.Bi-Directional Operation: Designed with a symmetrical structure allowing for smooth K-direction rotation (Oil inlet A and Oil inlet B), enabling forward and reverse operation.

5.Robust Construction: Features a sturdy installation surface with evenly distributed through holes for secure mounting. Equipped with standard oil inlets (A, B) and dedicated oil outlets (e.g., 2-G1/2", 2-M22X1.5) for efficient drainage and cooling.

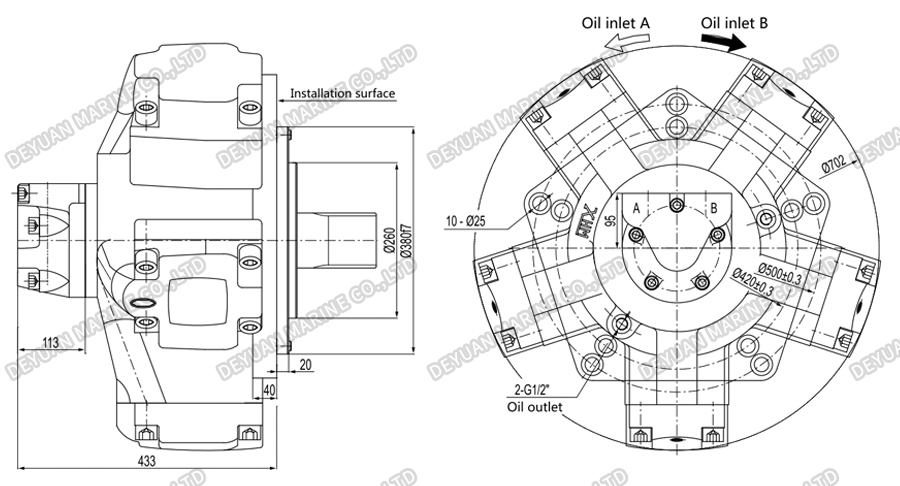

Outline Dimension Drawing:

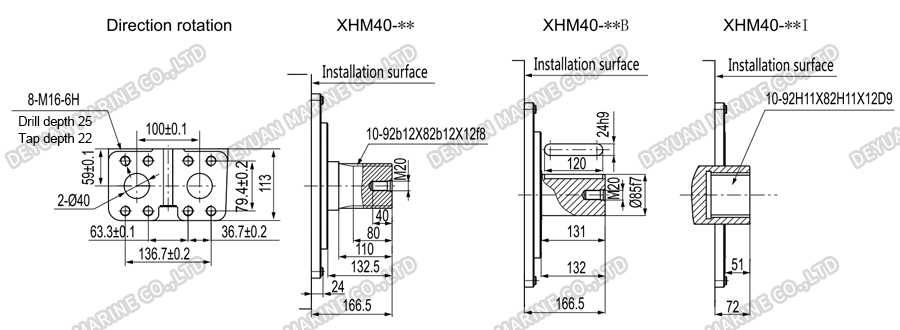

Shaft Extension Type:

Note: The above is the outline drawing of the XHM40 hydraulic motor. If you need to view drawings for other models, please contact our sales team.

Technical Specifications:

Applications：

Ideal for heavy machinery requiring high torque at low speeds, such as marine winches, mining equipment, metallurgical machinery, construction cranes, and heavy-duty industrial drives.
