Product Description

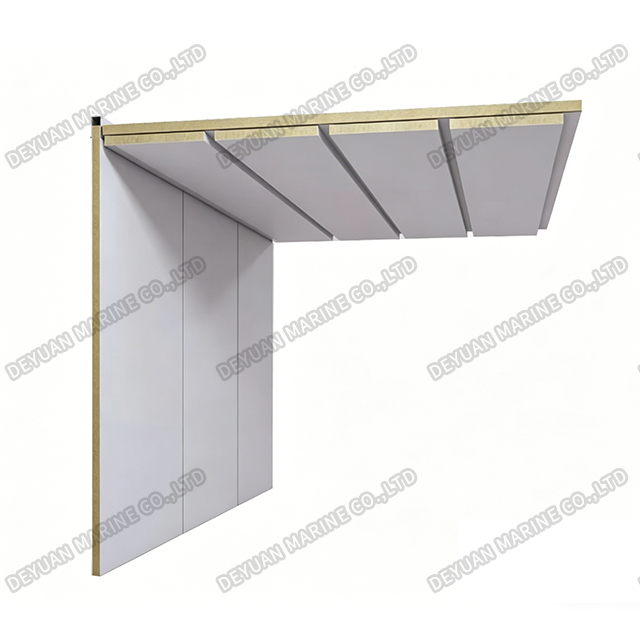

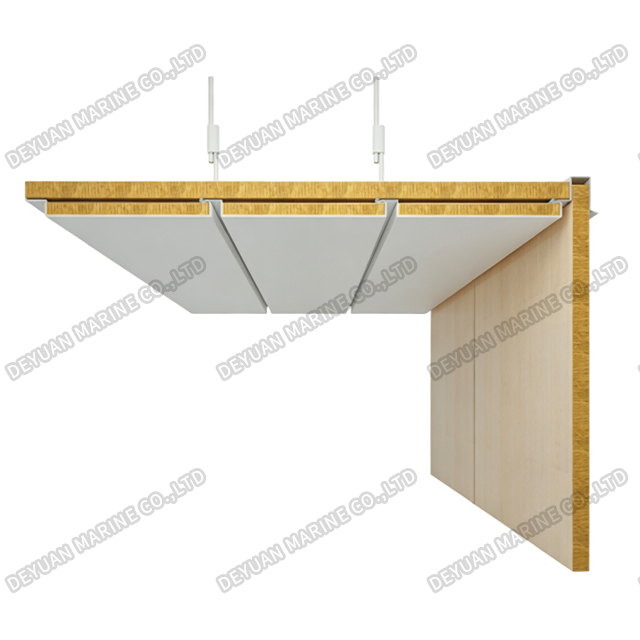

Type D Ceiling Panel
Product Introduction:
The Type D Ceiling Panel is a high-performance acoustic ceiling solution designed to deliver superior sound control and lasting durability in commercial and institutional interiors. Featuring a dense, sound-absorbing core and a clean, professional finish, the Type D panel effectively reduces ambient noise, controls reverberation, and enhances speech clarity.
Ideal for suspended ceiling grids, the Type D panel is engineered for easy drop-in installation and seamless integration with standard T-bar systems. Its robust construction resists sagging, moisture, and edge damage, ensuring a long service life even in moderately humid environments such as restrooms, corridors, or open-plan offices.
Product Parameters：
| Type | C6 B | C6 |
| Fire Class | B-0 | B-15 |
| Sound Reduction | 50dB | / |
| Weight | 7.6kg/m² | 13.5kg/m² |
| Thickness | 25mm | 25mm+35mm |
| Core material | Rock wool 80kg/m³ | Rock wool 60kg/m³ |
| Surface finish | PVC film/Powder painted+Galvanized steel/Stainless steel | |
| Dimension | Thickness×300mm Width×Required Length(Max4000mm) | |
| Tolerances | Width (-1,0),Height±3,Thickness(-1,0) | |

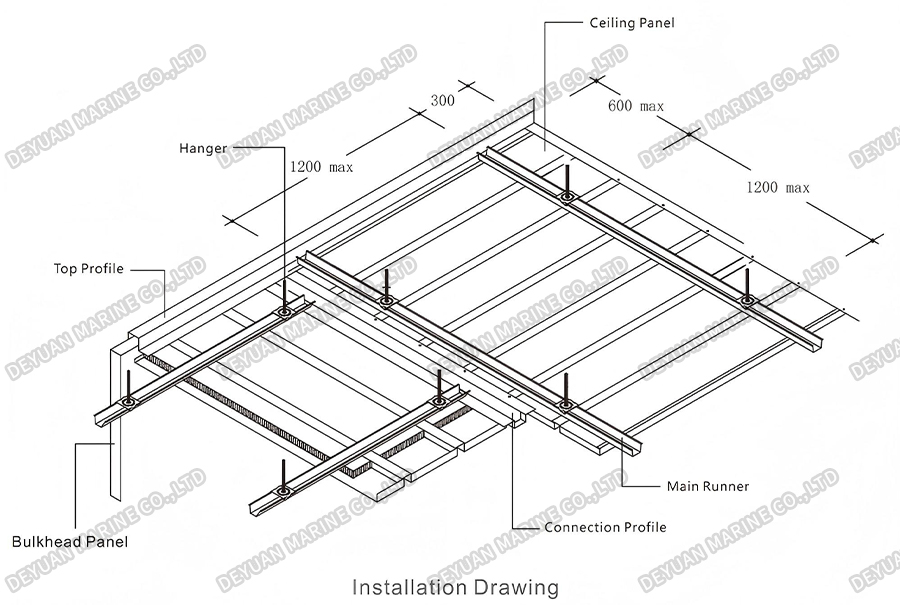

Installation Drawing:
Key Features:
*Excellent sound absorption – High NRC (Noise Reduction Coefficient) for noisy environments
*Durable edge design – Reduces chipping and edge fraying during installation and maintenance
*Moisture resistant – Suitable for areas with up to 90% relative humidity (non-condensing)
*Fire safety compliant – Meets ASTM E84 Class A or equivalent standards
*Light reflective surface – Enhances ambient lighting and reduces energy costs
*Easy maintenance – Can be vacuumed or spot-cleaned
Typical Applications:
*Office cubicle areas
*School classrooms and hallways
*Healthcare facilities (clinics, patient rooms)
*Retail stores and showrooms
*Conference and meeting rooms
*Light industrial or clean manufacturing spaces
For contractors, facility managers, and architects seeking a reliable, cost-effective ceiling panel that balances acoustic performance with real-world durability, the Type D Ceiling Panel is an excellent choice.
