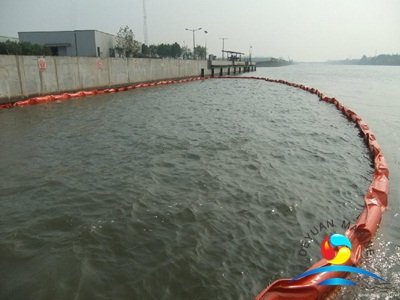

Solid Float PVC Oil Boom :
The solid float PVC oil boom is the important equipment used for preventing spilled oil on waters from diffusion and transfer. It is widely used for long-term deployment on waters such as open seas, bays, harbors, wharfs, rivers, oil platform, oil-refining plants, oil piers, oil storage and also for emergent use in oil spilling accidents.
Technical data:
| Model/Parameter | WGV600 | WGV700 | WGV750 | WGV800 | WGV900 | WGV1000 | WGV1100 |
| Overall height(mm) | 600 | 700 | 750 | 800 | 900 | 1000 | 1100 |
| Freeboard(mm) | 150 | 210 | 260 | 280 | 320 | 340 | 370 |
| Draft(mm) | 380 | 390 | 400 | 420 | 490 | 540 | 560 |
| Max, working tensile strength(mm) | 20 | 25 | 30 | 45 | 55 | 75 | 85 |
| Length per section (m) | 20 |
| Max, wave height to withstand(m) | 0.5 | 0.5 | 1 | 1.5 | 1.8 | 2 | 2 |
| Max, wind speed to withstand(m/s) | 8 | 10 | 10 | 15 | 15 | 18 | 20 |
| Max, current speed to with stand(KN) | 1 | 1 | 1.5 | 1.5 | 2 | 2.5 | 2.5 |
| Standard connector | ASTM or Stainless steel,Hinge or pin |
| packing dimensions for 20m（m） | 1x1x0.6 | 1.2x1x1 | 1.2x1x1 | 1.3x1.1x1.1 | 1.4x1.5x1.2 | 1.4x1.6x1.3 | 1.4x1.7x1.4 |
More Solid Float PVC Oil Boom Can Be Offered,Pls Contact Us For More Details.
