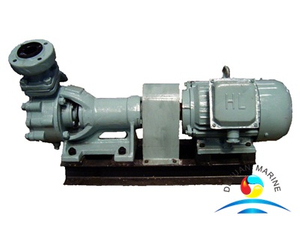

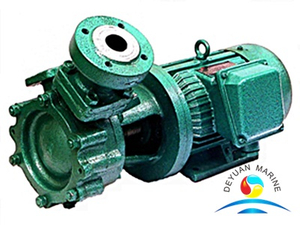

Self-Priming Marine Horizontal Vortex Water Liquid Pump

Series: CWF
Structural style: Vertical
Voltage: 50HZ,3Ф,380V
Capacity: (0.72~14.4)m3/h
Pump head: (20,25,30,35...90)m
Speed: 2900rpm
Power: 0.75~7.5KW

Product Description

W Series Marine Horizontal Vortex Pump
1.Vortex pump is be used for pumping water liquid liquid temperature does not exceed 60 is often used in boiler feed water
2.The characteristics of the vortex pump is small in size, light weight has great superiority in ship device
3.Has a self-priming ability or by using a simple device to achieve self-priming


Type Main technical parameter Motor power
Capacity Head Speed NPSHR Shaftpower (kw)
(m3/h) (m) (r/min) (m) (kw)
20W-20 0.72 20 2900 6.5 0.18 0.75
25W-25 1.44 25 2900 6 0.38 0.75
32W-30 2.88 30 2900 6 0.74 1.5
40W-40 5.4 40 2900 5 1.73 4
50W-45 9 45 2900 4 3.06 5.5
65W-50 14.4 50 2900 3.5 5.03 11
20W-65 0.72 65 2900 6 0.85 2.2
25W-70 1.44 70 2900 5.5 1.25 2.2
32W-75 2.88 75 2900 5 1.96 4
40W-80 5 80 2900 4 3.36 5.5
40W-90 5.4 90 2900 3.5 4.01 7.5
