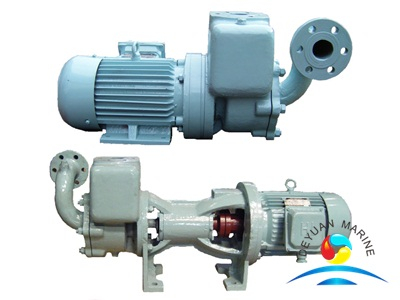

CWX Series Marine Horizontal Self-priming Centrifugal Vortex Water Pump

Origin: Made in China
Install type: Horizontal
Struction: Self-priming
Application: Pumping water for drinking or washing
Body material: Cast iron, bronze, etc
Driven: Electric motor
Delivery time: 3-15days
Brand: Deyuan Marine

Product Description

CWX Series Marine Horizontal Self-priming Centrifugal Vortex Water Pump


1. The vortex pump is used for pumping water liquid temperature does not exceed 60

2. The vortex pump has simple structure characteristics of small volume, light weight has great superiority in ship device
3. With self-priming ability or by using a simple device to achieve self-priming

Type (50HZ)Main technical parameter Motor power(kw)
Capacity Head Speed NPSHR Shaft power(kw)
(m3/h) (m) (r/min) (m)
1.5CWX-2 3 40 2900 4 2 2.2
1.5CWX-3 6.5 35 2900 4 2.3 3
1.5CWX-4 10 35 2900 4 2.5 4
1.5CWX-2A 3 40 2900 4 2 2.2
1.5CWX-3A 6.5 35 2900 4 2.3 3
1.5CWX-4A 10 35 2900 4 2.5 4
60HZ  main technical parameter
1.5CWX1-2 3.6 57 3500 4.5 3.43 4
1.5CWX1-3 7.8 50 3500 4.5 3.95 5.5
1.5CWX1-4 12 50 3500 4.5 4.29 5.5
1.5CWX1-2A 3.6 57 3500 4.5 3.43 4
1.5CWX1-3A 7.8 50 3500 4.5 3.95 5.5
1.5CWX1-4A 12 50 3500 4.5 4.29 5.5
