Product Description

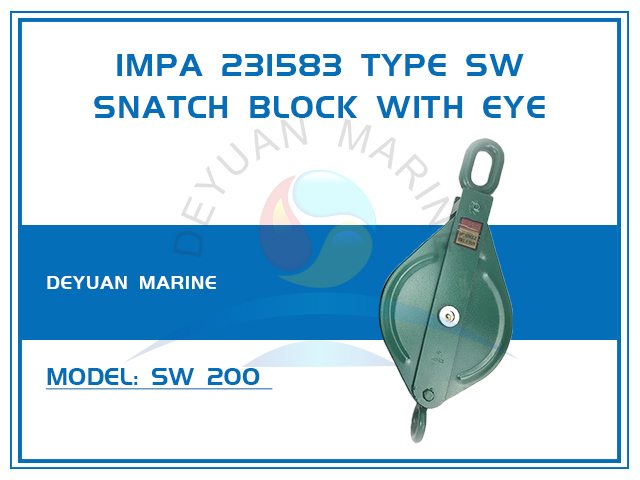

SW200 Steel Snatch Block for Wire Rope IMPA 231583
The IMPA 231753 code indicates a Lashing Snatch Block, which is safe and easily operated locking device, with a 200 mm pulley sheave. Applicable wire rope size is 25mm.
The snatch block is one of today's most widely used type of blocks. As generally applied, its title refers to that group of intermittent-service blocks which quickly attach and“snatch” or move loads over relatively short distances. This is opposed to long lifts and continuous service for which crane and construction blocks are designed.
Specifications
| IMPA | Model | Accessory | Sheave Size | Rope Dia. | SWL | Weight |
| 231582 | SW160 | with Eye | Φ160mm | 20mm | 1T | 12.1kgs |
| 231583 | SW200 | with Eye | Φ200mm | 25mm | 2T | 27.1kgs |
| 231584 | SW240 | with Eye | Φ240mm | 28mm | 3T | 47.6kgs |
Snatch Block Drawing:
