Product Description

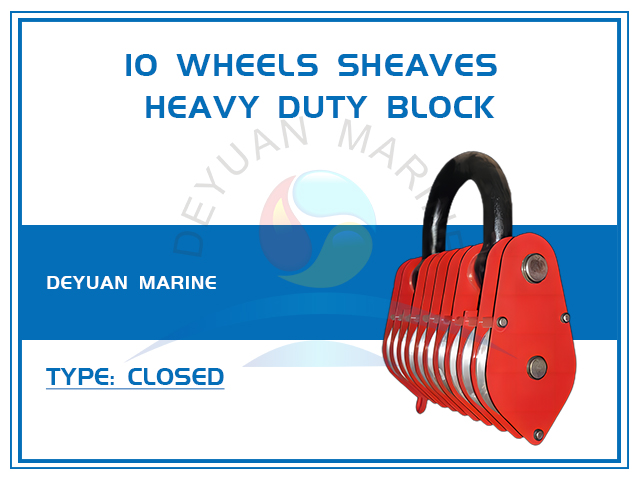

10 Sheaves Lifting Ring Pulley Block
The ten sheaves lifting ring pulley block consists of 10 pulley wheels and a lifting shackle, working load limit available for 200t, 250t and 320t, so it's suitable for heavy duty lifting work.
It has high safety factor that the breaking force is 4 times of its rated load.
| Model | SWL | Proof Load | Rope Diameter(mm) | Pulley Diameter(mm) | Weight(kg) |
| DYB10-200T | 200t | 2500KN | 31-35 | 355 | 1650 |
| DYB10-250T | 250t | 3125KN | 35-38 | 400 | 2100 |
| DYB10-320T | 320t | 4000KN | 40-43 | 450 | 2800 |
