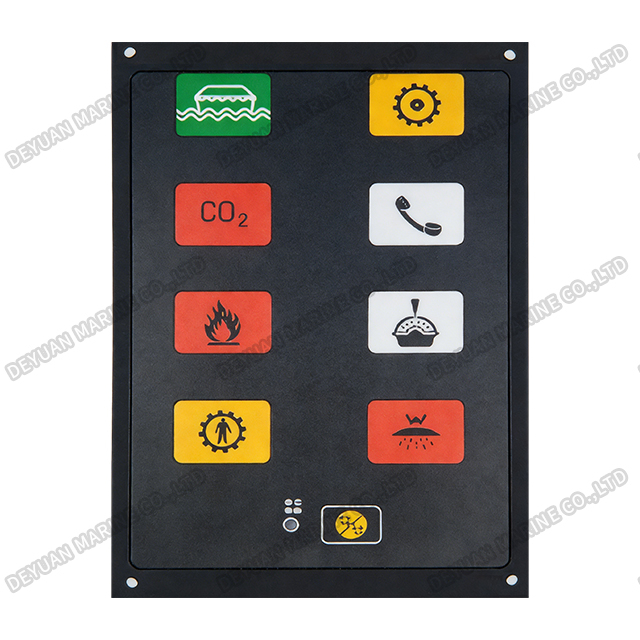

SFB-6Q (8-Channel) Alarm Indicator Column

SFB-6Q (8-Channel) Alarm Indicator Column

Product Introduction

The Marine SFB-6Q (8-Channel) Alarm Indicator Column is a high-capacity, centralized alarm annunciation system engineered for critical monitoring points on modern vessels and offshore platforms. As part of the enhanced "Q" series, this model combines multi-channel functionality with robust maritime performance, providing clear, simultaneous visual and audible indication for up to eight independent alarm circuits.

Constructed from heavy-duty, marine-grade materials such as 316L stainless steel or corrosion-resistant aluminum with a powder-coated finish, the column is built to withstand extreme environmental conditions including salt spray, UV radiation, temperature extremes, and constant vibration. Its design integrates eight distinct alarm channels, each featuring high-intensity, multi-color LED status indicators (typically red/alarm, amber/fault, green/normal) arranged for optimal visibility. These are paired with a powerful, multi-tone electronic siren capable of penetrating high ambient noise levels in machinery spaces or on open decks.

The SFB-6Q variant typically incorporates enhanced features such as quartz-enhanced lighting elements for maximum visual penetration, quick-response circuitry for immediate alarm activation, and reinforced sealing to meet IP66/IP67 protection standards against water and dust ingress. Designed for strategic installation at key locations like engine room entrances, central control stations, or process areas, it operates on standard marine 24VDC or AC power supplies and includes user-configurable options for flash patterns, sound tones, and individual channel testing.

Compliant with SOLAS, IMO, and major classification society requirements, the SFB-6Q (8-Channel) Alarm Indicator Column serves as a vital interface between distributed sensors and personnel, enabling rapid identification of specific system faults and ensuring timely emergency response for enhanced operational safety.

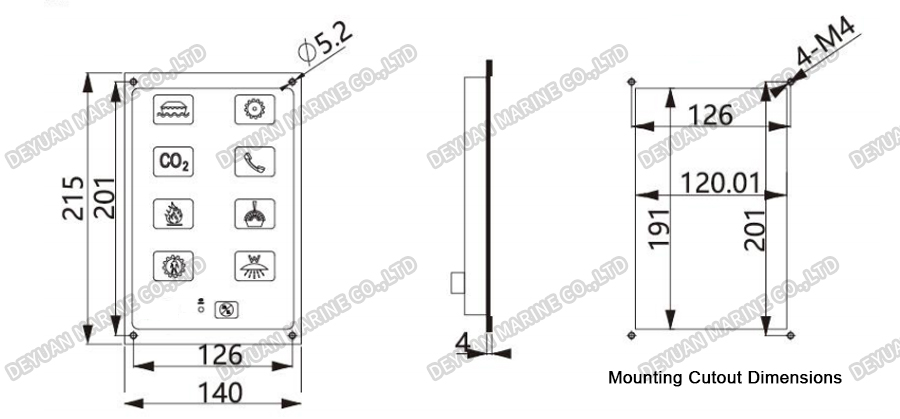

Drawing

Technical Data

Alarm Indicator Column

Alarm Indicator Column System Connection Diagram
