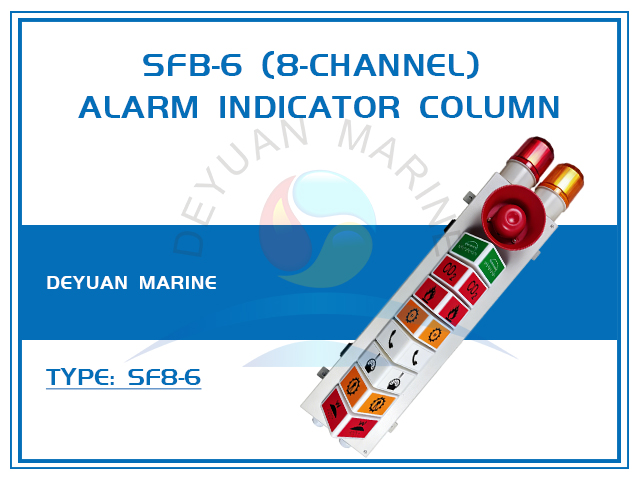

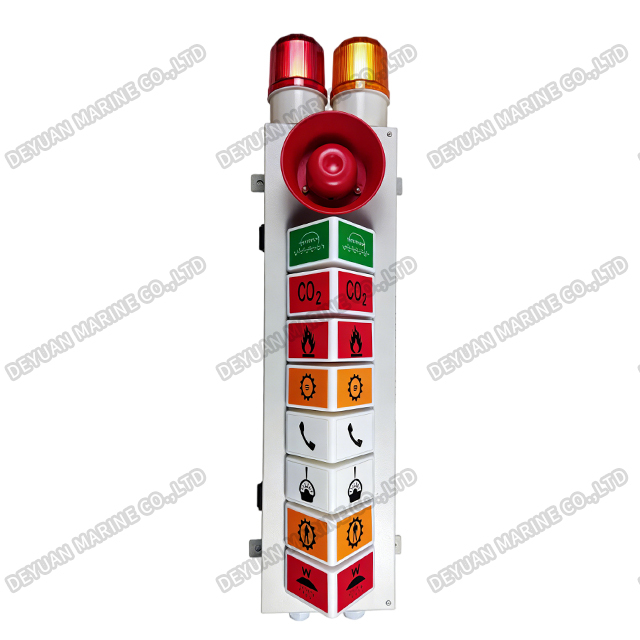

SFB-6 (8-Channel) Alarm Indicator Column

SFB-6 (8-Channel) Alarm Indicator Column

Product Introduction:

The Marine SFB-6 (8-Channel) Alarm Indicator Column is a high-capacity, multi-signal alarm annunciation pillar specifically engineered for complex monitoring points on vessels and offshore installations. As a standalone, highly visible unit, it integrates the functionality of eight independent alarm channels into a single robust column, providing clear, simultaneous status indication for multiple critical systems.

Constructed from marine-grade materials such as powder-coated steel or corrosion-resistant aluminum, the column is built to withstand harsh environmental conditions including salt spray, UV radiation, heavy rain, and extreme temperatures. Its core feature is the centralized display of eight distinct alarm points, typically utilizing high-intensity, multi-color (Red/Amber/Green) LED indicators for each channel, paired with a powerful, multi-tone audible siren or horn. This design allows for immediate visual and auditory identification of specific faults—such as individual pump failures, bilge level alerts, or engine parameters exceeding limits—from a central location.

The SFB-6 is designed for easy installation on open decks, at machinery space entrances, or on platform walkways. It operates on standard marine 24VDC or AC power supplies and often includes features like programmable flash patterns, individual channel test/silence functions, and a high IP rating (e.g., IP66) for complete environmental protection. Compliance with major marine standards (SOLAS, IMO, Class) ensures its reliability as a critical component for enhancing situational awareness and enabling rapid, targeted crew response to specific operational alarms.

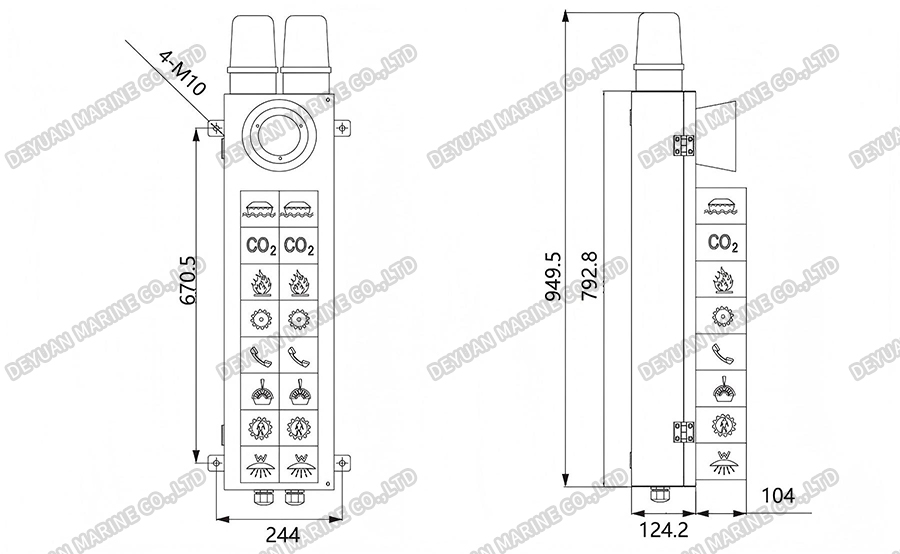

Drawing:

Technical Data:

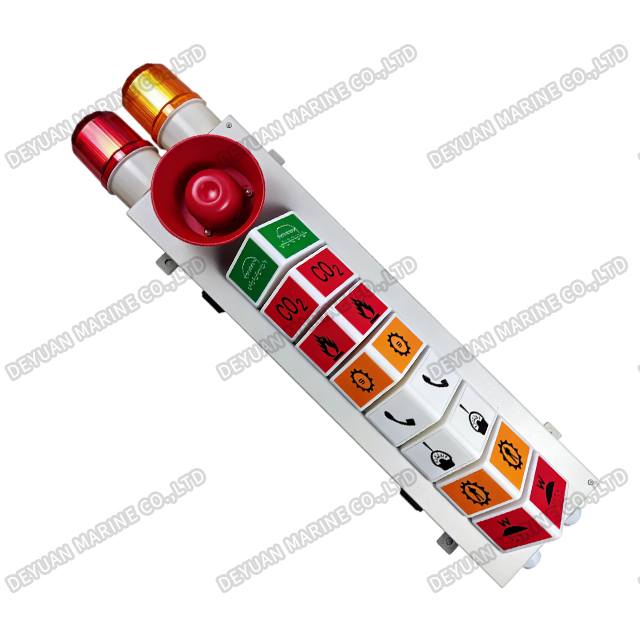

Alarm Indicator Column:

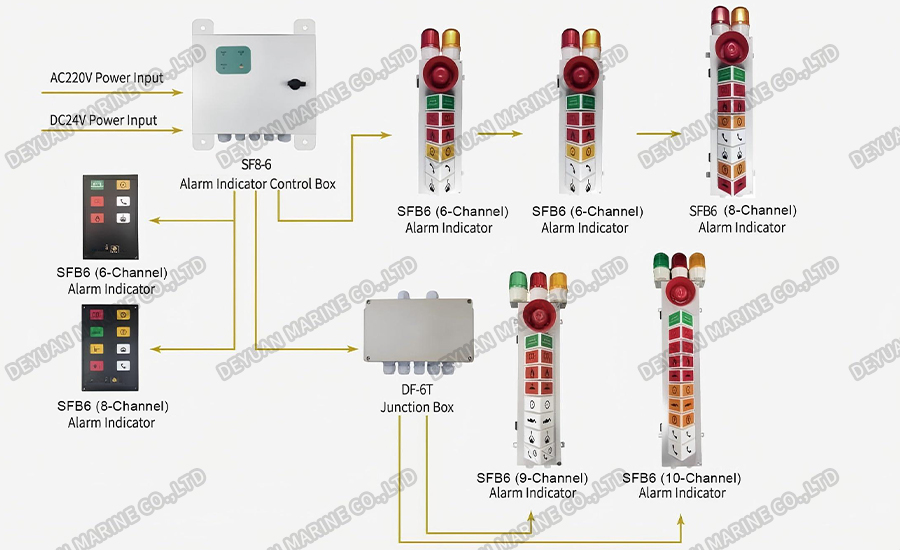

Alarm Indicator Column System Connection Diagram:
