Product Description

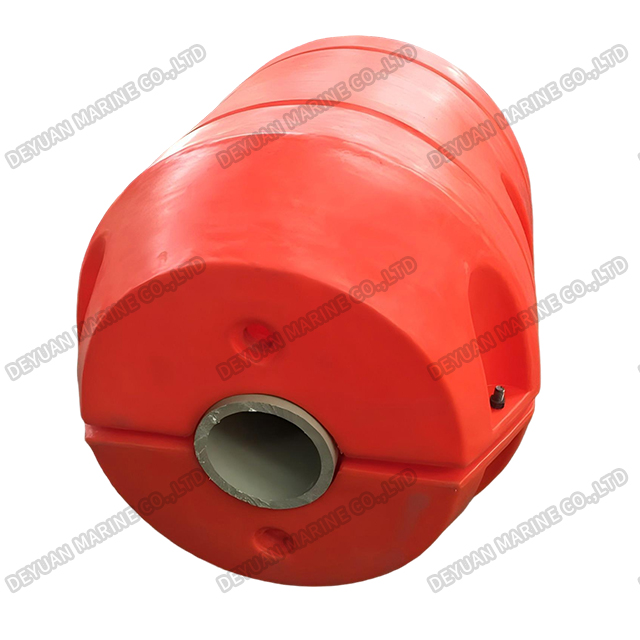

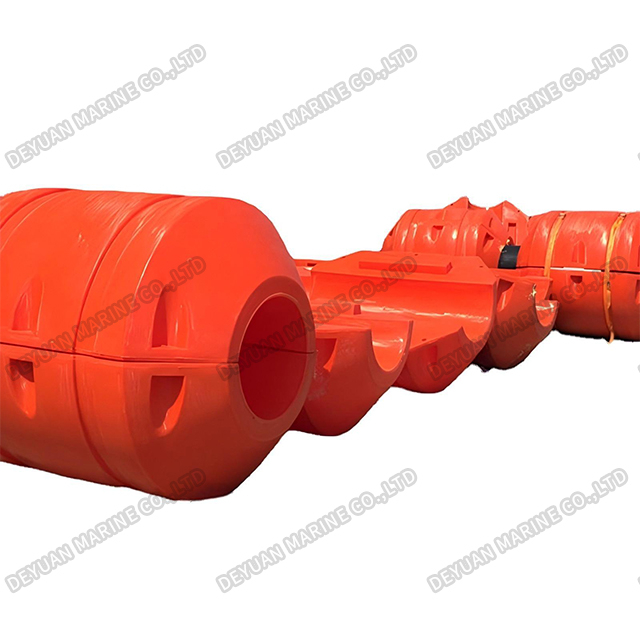

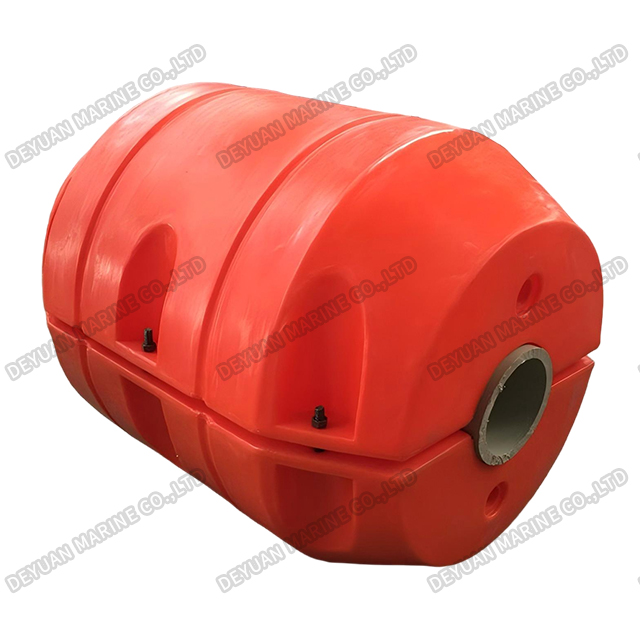

Rotomolded Pipeline Floating Body
Product Introduction

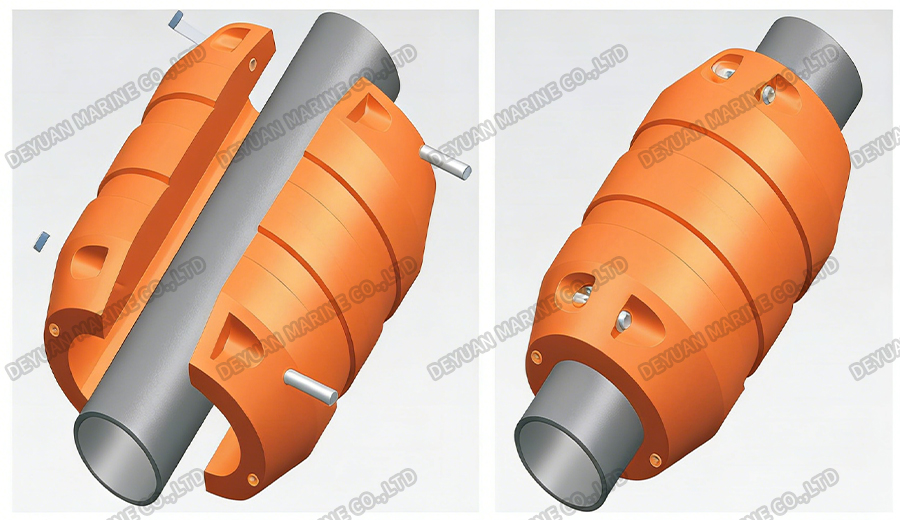

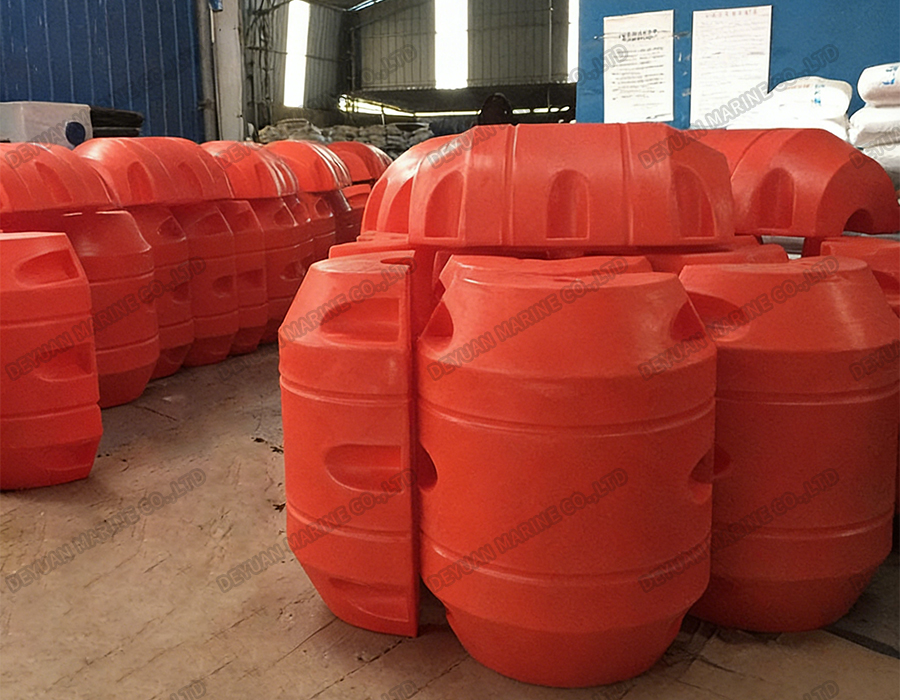

Rotomolded pipe floats are divided into pipe-clamping floats and debris-blocking floats.
The outer shell is made of 100% medium- and low-density polyethylene (MDPE). The MDPE float is manufactured using advanced rotomolding technology, resulting in a seamless, fully enclosed product that is corrosion-resistant, anti-aging, impact-resistant, and leak-proof. The interior is filled with closed-cell polyurethane foam.
The product has high buoyancy, and even if the outer shell is damaged, its use is not affected. It is mainly used for buoyancy support in river, lake, and marine dredging and transportation pipelines. It is the best alternative to traditional steel floats. Specific applications, shapes, models, specifications, and dimensions can be customized according to customer requirements.
MDPE floats are produced from MDPE resin through a one-time rotomolding process followed by polyurethane foaming.
Pipeline Floating Body Specifications
| Model | Specifications | Inner Diameter(mm) | Outer Diameter ( mm ) | Length ( mm ) | Buoyancy(KG) | Bolt Specifications |
| YFT-4040 | Sphere Φ400 * Inner Φ110 | 110 | 400 | 110 | 25 | M8*50*4 |
| DFT-3060 | Φ300*H600 Inner Φ85 Φ110 Φ125 | 110 | 300 | 600 | 30 | M16*140*4 |
| DFT-30100 | Φ300*H1000 Inner Φ30 | 30 | 300 | 1000 | 60 | M8*100*6 |
| YFT-3641 | Φ360*H410 Inner Φ60 | 60 | 360 | 410 | 30 | M8*50*4 |
| YFT-38100 | Φ380*H1000 Inner Φ100 | 100 | 380 | 1000 | 95 | M8*80*8 |
| YFT-4042 | Φ400*H420 Inner Φ110 | 110 | 400 | 420 | 32 | M8*50*4 |
| DFT-4060 | Φ400*H600 Inner Φ18 | 18 | 400 | 600 | 45 | M12*100*4 |
| YFT-5075 | Φ500*H750 Inner Φ70 | 70 | 500 | 750 | 90 | M8*80*4 |
| DFT-5070 | Φ500*H700 Inner Φ160 Φ180 | 160/180 | 500 | 700 | 80 | M12*100*4 |
| YFT-5080 | Φ500*H800 Inner Φ120 Φ160 Φ200 Φ220 | 120/160/200/220 | 500 | 800 | 120 | M8*100*6 |
| YFT-5080 | Φ500*H800 Inner Φ25 | 250 | 500 | 800 | 120 | M8*100*4 |
| YFT-60100 | Φ600*H1000 Inner Φ110 Φ135 Φ140 | 110/135 | 600 | 1000 | 220 | M10*100*6 |
| YFT-61100 | Φ615*H1000 Inner Φ50 Φ90 | 50/90 | 615 | 1000 | 230 | M10*100*6 |
| DFT-7080 | Φ700*H800 Inner Φ320 Φ335 Φ360 | 320/335/360 | 700 | 800 | 220 | M12*100*4 |
| YFT-7090 | Φ700*H900 Inner Φ300 | 300 | 700 | 900 | 250 | M10*100*4 |
| DFT-80110 | Φ800*H110 Inner Φ400 Φ450 | 400/450 | 800 | 1100 | 520 | M12*100*6 |
| YFT-80120 | Φ800*H1200 Inner Φ75 | 75 | 800 | 1200 | 560 | M14*100*6 |
| YFT-85110 | Φ850*H1100 Inner Φ220 Φ240*3 | 220/240 | 850 | 1100 | 450 | M16*120*6 |
| YFT-85110 | Φ850*H1100 Inner Φ500 | 500 | 850 | 1100 | 380 | M16*120*6 |
| YFT-90110 | Φ900*H1100 Inner Φ360 | 360 | 900 | 1100 | 560 | M16*120*6 |
| YFT-10052 | Φ1000*H520 Inner Φ300 | 300 | 1000 | 520 | 340 | M16*120*6 |
| YFT-110140 | Φ1100*H1400 Inner Φ412 | 412 | 1100 | 1400 | 1200 | M16*150*6 |
| DFT-120120 | Φ1200*H1200 Inner Φ550 | 550 | 1200 | 1200 | 1000 | M16*150*6 |
| YFT-140160 | Φ1400*H1600 Inner Φ560 | 560 | 1400 | 1600 | 2050 | M18*150*6 |
| YFT-180200 | Φ1800*H2000 Inner Φ800 | 800 | 1800 | 2000 | 3800 | M18*150*6 |
Product Features
Lightweight and highly buoyant; impact-resistant and resistant to acid and alkali corrosion; low absorption rate; simple construction and low maintenance costs.
Product Functions
* Ensures the pipeline floats on water;
* The orange-red exterior color serves as a warning sign to prevent pipeline collisions;
* Facilitates pipeline inspection and maintenance;
* Shortens construction time, reduces costs, and minimizes maintenance expenses.
Product Applications

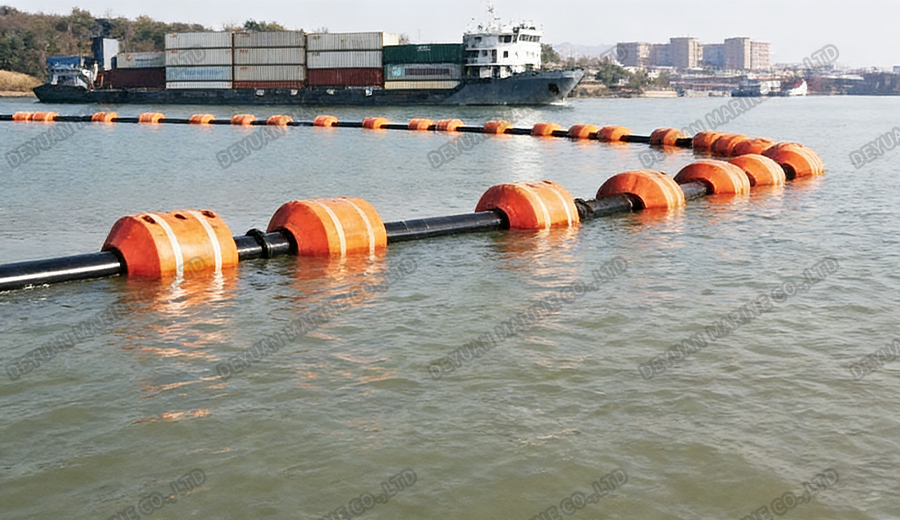

Primarily used for laying dredged pipelines on water in marine and riverine environments using dredging vessels, sand blowing vessels, and other dredging equipment.
