Product Description

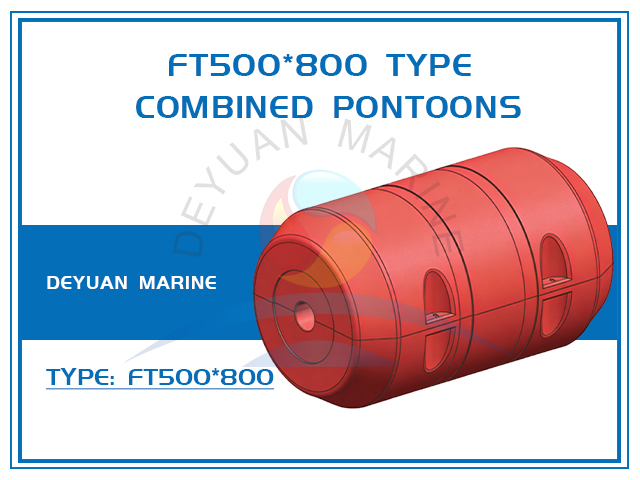

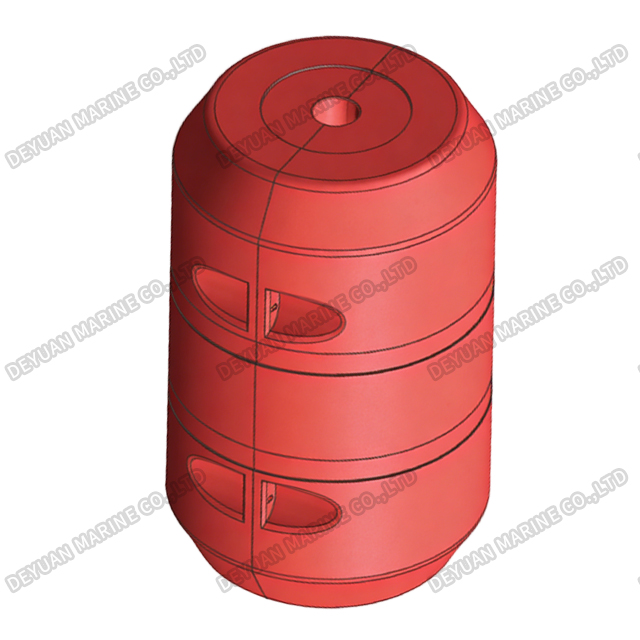

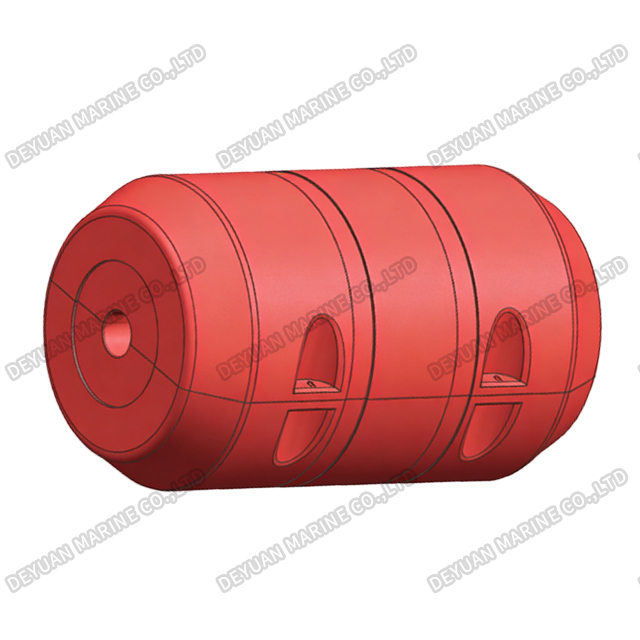

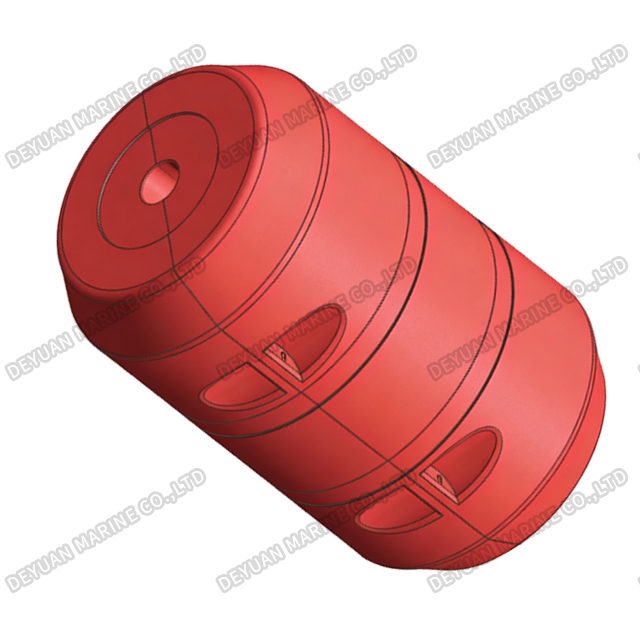

FT500*800 Type Combined Pontoons
Product Introduction
The FT500*800 Type Combined Pontoons represent the pinnacle of modular marine engineering, designed to deliver superior buoyancy, stability, and durability for a wide range of floating platforms. Whether you are constructing a private dock, a commercial work platform, or a heavy-duty marine infrastructure, the FT500*800 system offers a versatile and robust solution engineered to withstand harsh aquatic environments.
Technical Parameters
| Model | Inner Diameter(mm) | Outer Diameter ( mm ) | Length ( mm ) | Bolt Specifications |
| FT500×700 | 160/180 | 500 | 700 | m12×100×4 |
| FT500×800 | 75/200/220/250 | 500 | 800 | m12×100×4 |
| FT500×1000 | 64 | 500 | 100 | m12×100×10 |
Key Features & Benefits
*Robust Construction: Each pontoon is manufactured from high-density polyethylene (HDPE) using a rotational molding process. This ensures the units are seamless, leak-proof, and incredibly resistant to impact, UV radiation, corrosion, and chemicals.
*Standardized Dimensions: Following the FT500*800 specification, each module measures 500mm in height and 800mm in width, providing an optimized ratio of freeboard to displacement for superior load-bearing capacity.
*Modular & Interlocking Design: The pontoons feature a precision-engineered interlocking pin connection system. This allows for rapid tool-free assembly, creating a rigid and stable structure that can be easily expanded, reconfigured, or disassembled as project requirements evolve.
*High Load Capacity: The internal structure is reinforced to support significant weight, making these pontoons suitable for heavy machinery, pedestrian walkways, and floating equipment platforms.
*Low Maintenance: The non-porous HDPE material resists marine growth and is easy to clean. Unlike wood or steel, these pontoons will not rot, rust, or splinter, ensuring a long service life with minimal upkeep.
*Eco-Friendly: Constructed from non-toxic, fully recyclable materials, the FT500*800 pontoons are safe for freshwater and saltwater environments, preventing water pollution.
Typical Applications
Floating docks and marinas
Pontoon bridges and walkways
Solar panel floating platforms
Fishing and recreational platforms
Industrial work floats
Emergency response floating structures
