Product Description
Remote Control Grab Bucket

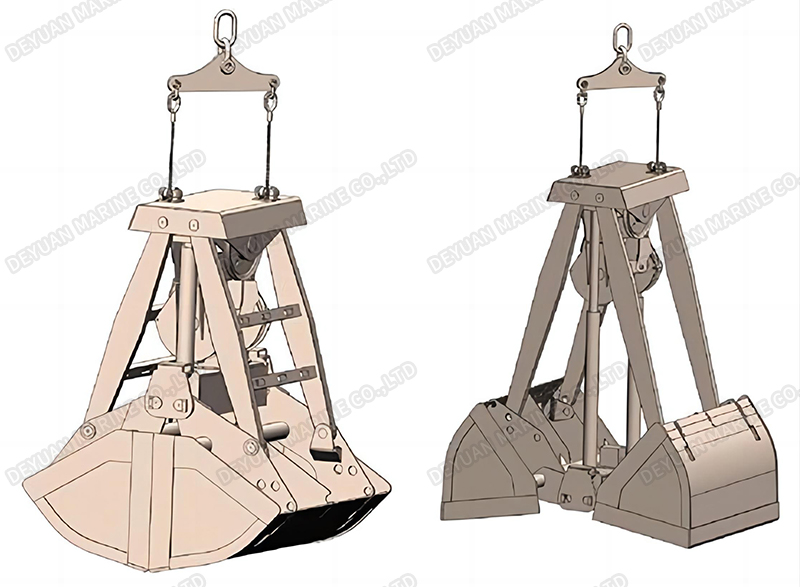

Remote control grabs are generally used for bulk cargo loading and unloading operations with hook-type cranes which are without opening and closing functions. The grab is opened remotely by lifting and lowering the hook to release materials. The remote control grab does not require an external power supply. It comes with batteries, solenoid valves, oil cylinders, etc. to open the grab and release materials. It uses the grab's own weight and the opening and closing wire rope to grab and close bulk cargo.
How to choose a suitable size of Remote Control Grab Bucket?
1. find out the crane load, there are 5t,10t,16t,20t,25t,32t,40t,50t options for the Remote Control Grab Bucket.
2. confirm the bucket capacity according to density of loading material.
Model DRG-2-xt-ym3 means DEYUAN MARINE brand, RG means remote control Grab Bucket, -2 means 2-clamshell, xt-ym3 means corresponding x tons Crane Load and y cubic meters of bucket capacity.
Please refer to below data sheet, to determine the crane load and bucket capacity:
Technical Specifications Data Sheet
| Crane Load | 5t | 10t | 16t | 20t | 25t | 32t | 40t | 50t | |
| Density(t/m³) | 1.0-2.5 | ||||||||
| Bucket Capacity(m³) | 3.0-1.0 | 6.0-2.3 | 10.0-4.0 | 11.5-4.5 | 16.0-6.0 | 19.0-7.6 | 24-9.4 | 29.0-11.6 | |
| Weight(Kg) | 2200.00 | 4200 | 6200 | 8600 | 9500 | 13000 | 16500 | 21000 | |
| DIM | Closed Width | 2400 | 2660 | 2900 | 3050 | 3260 | 3450 | 3598 | 4160 |
| Open Width | 2980 | 3240 | 3600 | 3998 | 4184 | 4368 | 4480 | 5400 | |
| Closed Height | 3220 | 3566 | 3980 | 4168 | 4334 | 4697 | 5099 | 5800 | |
| Open Height | 3490 | 3898 | 4369 | 4596 | 4777 | 5088 | 5680 | 6169 | |
| Side Length | 2000 | 2600 | 3250 | 3500 | 3750 | 4200 | 4560 | 4660 | |
