Product Description

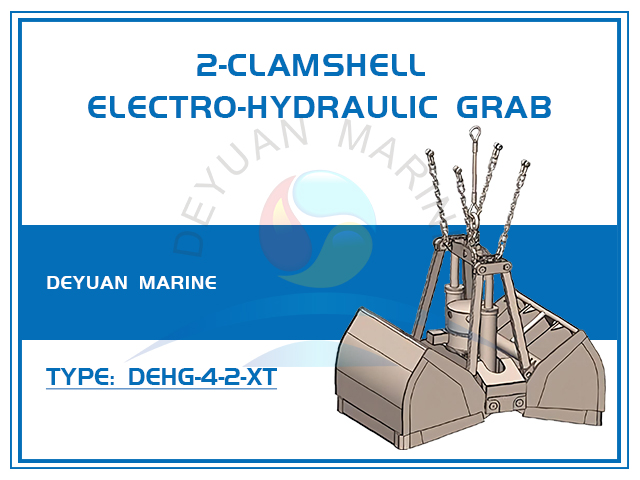

Electro-Hydraulic 2-Clamshell Grab Bucket

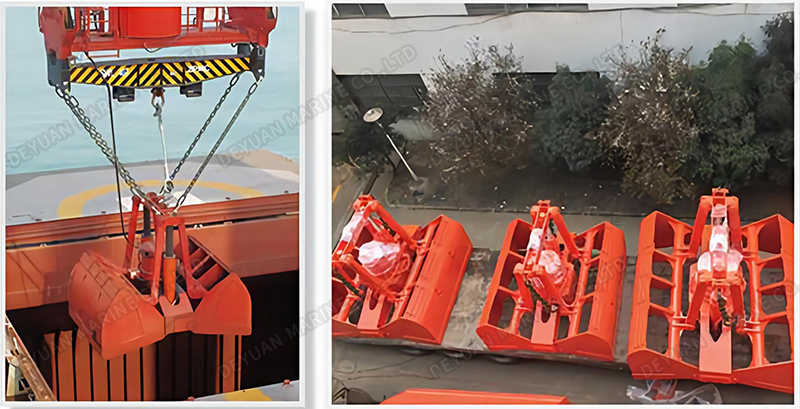

The electro-hydraulic grab bucket is suitable for marine cranes and hook cranes. The hydraulic oil station is driven by a motor through an external power supply, so that the force generated by the oil cylinder causes the bucket clamshell to open and close to work. Widely used in ships, environmental protection power plants, steel plants, etc. to capture materials including coal, sand, ore, etc.
How to choose a sutiable size of Electro-Hydraulic 2-Clamshell Grab Bucket?
1. find out the crane load, there are 5t,10t,16t,25t,40t options for the Electro-Hydraulic 2-Clamshell Grab Bucket.
2. confirm the bucket capacity according to density of loading material.
Model DEHG-2-xt-ym3 means DEYUAN MARINE brand, EHG means Electric drive Hydraulic Grab Bucket, xt-ym3 means corresponding x tons Crane Load and y cubic meters of bucket capacity.
Please refer to below datasheet, to determine the crane load and bucket capacity:
Technical Specifications
| Crane Load | 5t | 10t | 16t | 25t | 32t | 40t |
| Density (t/m³) | 0.6-3.0 | |||||
| Bucket Capacity(KG) | 1.0-3.0 | 2.0-6.0 | 3.0-9.0 | 5.0-16.0 | 6.0-19.0 | 8.0-24.0 |
| Power of motor(KW） | 19 | 22 | 30 | 37 | 45 | 55 |
| Weigtht(KG) | 2400 | 4500 | 7000 | 9500 | 13000 | 16000 |
