Product Description

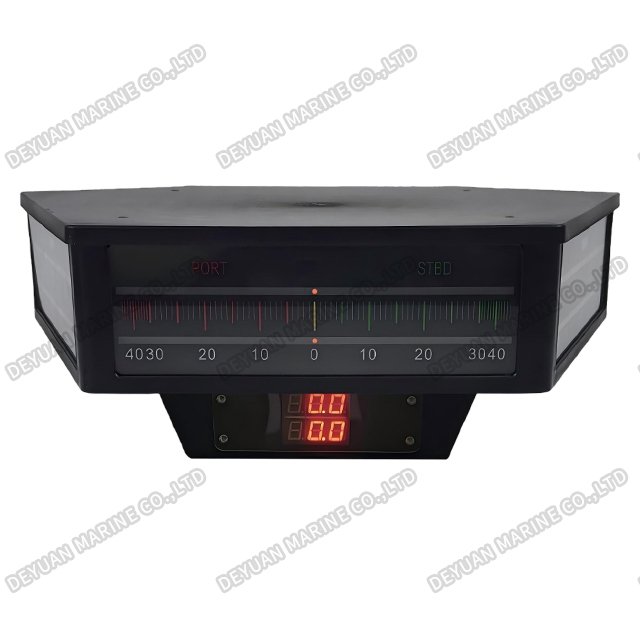

RA-3 Three-sided Rudder Angle Indicator(Dual Display)
Product Introduction
The Three-sided Rudder Angle Indicator (Dual Display) is an advanced marine navigation instrument engineered to deliver simultaneous, multi-perspective rudder position monitoring with the enhanced capability of displaying two separate angular ranges or operational modes on a single, integrated unit. This specialized design is critical for vessels with complex steering configurations or operational profiles requiring distinct rudder angle references.
Featuring a precision-engineered three-sided prismatic display window, this indicator presents clear, synchronized readings across three distinct viewing faces (typically covering a 120° to 150° viewing arc). Its core innovation lies in the dual display capability, which can be configured to show two different angular scales simultaneously—such as a standard ±35° scale alongside a high-resolution ±5° scale for precision maneuvering—or to display inputs from two independent rudder systems (e.g., main and emergency).
Housed in a rugged, flush-mount marine-grade enclosure, the unit is built to endure the harsh bridge environment, including vibration, salt spray, and wide temperature variations. Each viewing face features high-contrast, independently configurable dials with night illumination, ensuring instant readability from the central console, starboard, and portside vantage points.

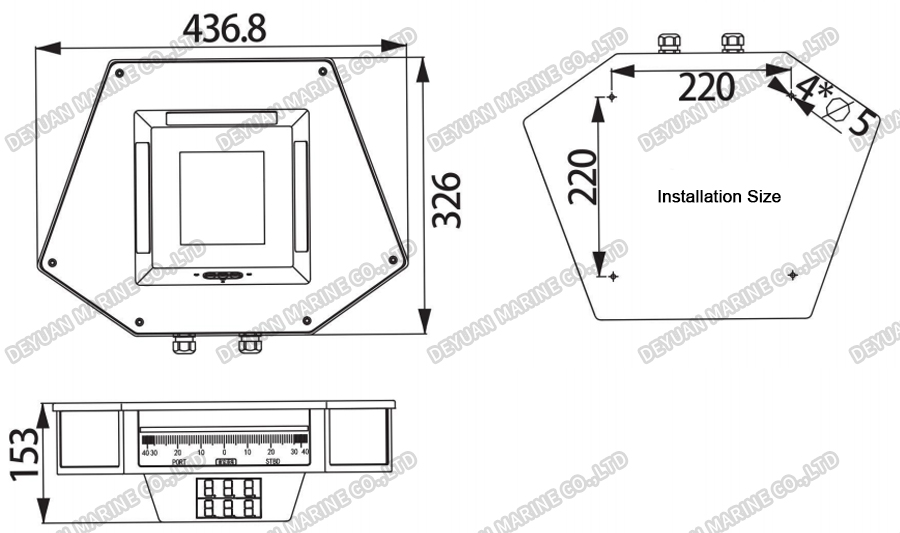

Drawing
Technical Data
| Rudder transmitter | |
| Power | DC24V（+30%~-25%） |
| Indication Range | -40°~+40° |
| Sample resolution | 0.1° |
| Data transmitting rate | ≥5 times/s |
| Data output interface | RS485/CANBUS/ETHER |
| System Resolution | ≤0.1° |
| Environment Temperature | -15℃~+55℃ |
| Humidity | ≤93%(temperature range25℃~40℃) |
| Flush type and Wall type rudder angle indicator | |
| Power | DC24V（+30%~-25%） |
| Data input interface | Lsolated RS485/CANBUS |
| Digital display range | -40°~40°,3digit 0.56 inchred and green LED display |
| Digital display divsion value | 0.1° |
| Simulated Optical Column Display Range | -40°~+40° |
| Simulated Optical Column Display Division Value | 1° |
| Light Adjustment | panel buttons and external buttons.Digital display and simulated diaplay dimmer at thesame time. |
| Light Adjustment Range | 4 levels cycled/auto adjustment |
| Environment Temperature | -15℃~+55°℃(for indoors),-25℃~+70℃(foroutdoors) |
| Humidity | ≤93%(Temperature 25℃~40℃) |
| Three-sided rudder angle Indicator | |
| Power | DC24V(+30%~-25%) |
| Data input interface | Lsolated RS485/CANBUS |
| Digital display range | -40°~+40°,3 digital 1.2inch red(green)LED display |
| Digital display division value | 0.1° |
| Simulated Optical Column Display Range | -40°~+40° |
| Simulated Optical Column Display Division Value | 1° |
| Light Adjustment | panel buttonsand external buttons. |
| Light Adjustment Range | 4 levels adjustment/auto adjustment |
| Environment Temperature | 5℃~55℃(Installed indoors) |
| Humidity | ≤93%(Temperature:25℃~40℃) |
Rudder Angle Indicator
Rudder Angle Indicator Connection Diagram
