Product Description

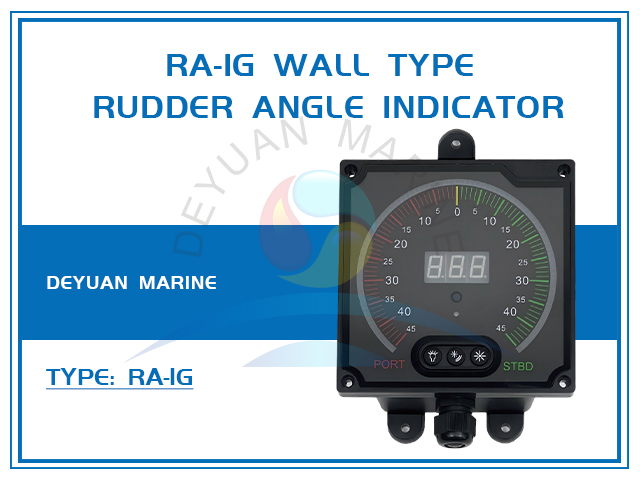

RA-1G Wall Type Rudder Angle Indicator
Product Introduction
The Wall Type Rudder Angle Indicator is a robust, high-visibility instrument designed for critical rudder position monitoring on ships, offshore platforms, and marine control stations. Engineered for durability and reliability in demanding marine environments, this standalone unit provides real-time, precise visual feedback of the rudder angle for safe navigation and maneuvering.
Featuring a compact yet sturdy wall-mounted enclosure, this indicator is ideal for installation in steering gear rooms, engine control rooms, aft control stations, or any auxiliary location where continuous rudder monitoring is required—without occupying valuable console or bridge panel space. Its distinct design allows for flexible placement while ensuring excellent visibility from various angles.
The instrument incorporates a large, clear dial calibrated from 35° port to 35° starboard, with bold markings and a highly contrasting pointer for instant readability even from a distance. Many models include dual-scale illumination for round-the-clock operation. It connects directly to the vessel’s rudder feedback system, delivering accurate and synchronized angle display to support both primary and backup steering operations.

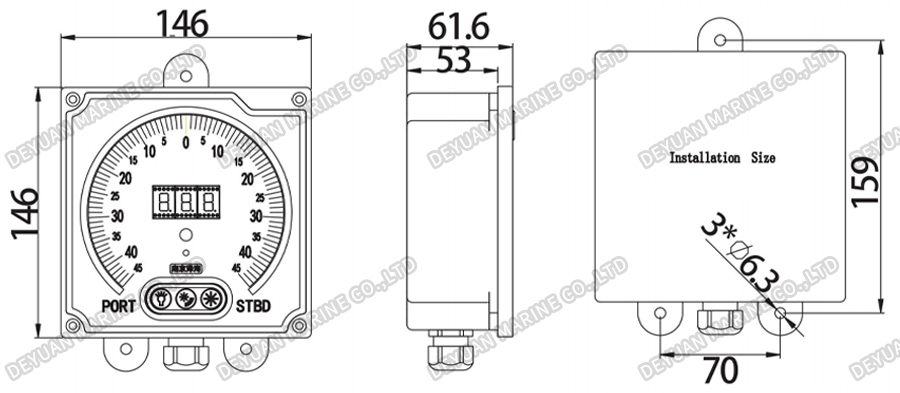

Drawing
Technical Data

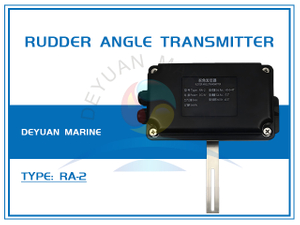

| Rudder transmitter | |
| Power | DC24V（+30%~-25%） |
| Indication Range | -40°~+40° |
| Sample resolution | 0.1° |
| Data transmitting rate | ≥5 times/s |
| Data output interface | RS485/CANBUS/ETHER |
| System Resolution | ≤0.1° |
| Environment Temperature | -15℃~+55℃ |
| Humidity | ≤93%(temperature range25℃~40℃) |
| Flush type and Wall type rudder angle indicator | |
| Power | DC24V（+30%~-25%） |
| Data input interface | Lsolated RS485/CANBUS |
| Digital display range | -40°~40°,3digit 0.56 inchred and green LED display |
| Digital display divsion value | 0.1° |
| Simulated Optical Column Display Range | -40°~+40° |
| Simulated Optical Column Display Division Value | 1° |
| Light Adjustment | panel buttons and external buttons.Digital display and simulated diaplay dimmer at thesame time. |
| Light Adjustment Range | 4 levels cycled/auto adjustment |
| Environment Temperature | -15℃~+55°℃(for indoors),-25℃~+70℃(foroutdoors) |
| Humidity | ≤93%(Temperature 25℃~40℃) |

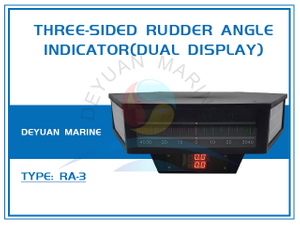

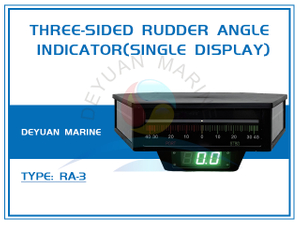

| Three-sided rudder angle Indicator | |
| Power | DC24V(+30%~-25%) |
| Data input interface | Lsolated RS485/CANBUS |
| Digital display range | -40°~+40°,3 digital 1.2inch red(green)LED display |
| Digital display division value | 0.1° |
| Simulated Optical Column Display Range | -40°~+40° |
| Simulated Optical Column Display Division Value | 1° |
| Light Adjustment | panel buttonsand external buttons. |
| Light Adjustment Range | 4 levels adjustment/auto adjustment |
| Environment Temperature | 5℃~55℃(Installed indoors) |
| Humidity | ≤93%(Temperature:25℃~40℃) |
Key Features & Benefits
1.Standalone Wall-Mounted Design: Easy to install on bulkheads or walls, saving console space and allowing installation near steering machinery or secondary control points.
2.High Durability: Built with corrosion-resistant, marine-grade materials to withstand moisture, vibration, and temperature variations.
3.Excellent Long-Distance Visibility: Large dial and bold markings ensure clear reading from several meters away.
4.Reliable Performance: Ensures accurate real-time rudder position feedback, enhancing operational safety.
5.Easy Integration: Compatible with standard rudder angle transmitters and marine electrical systems.
6.Low Maintenance: Designed for continuous duty with minimal service requirements.
Ideal for use in steering gear compartments, as a backup indicator on the bridge wing, or in engine control rooms, the Wall Type Rudder Angle Indicator is a vital monitoring tool that supports safe vessel handling, compliance with navigation standards, and enhanced situational awareness for crew members.

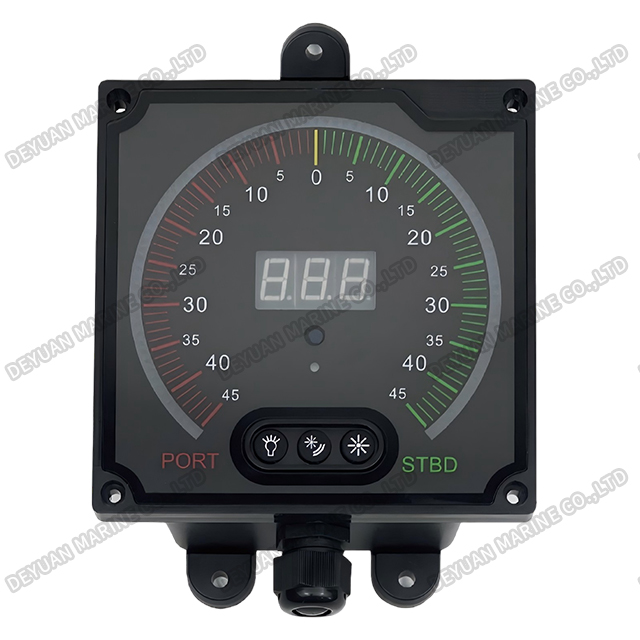

Rudder Angle Indicator

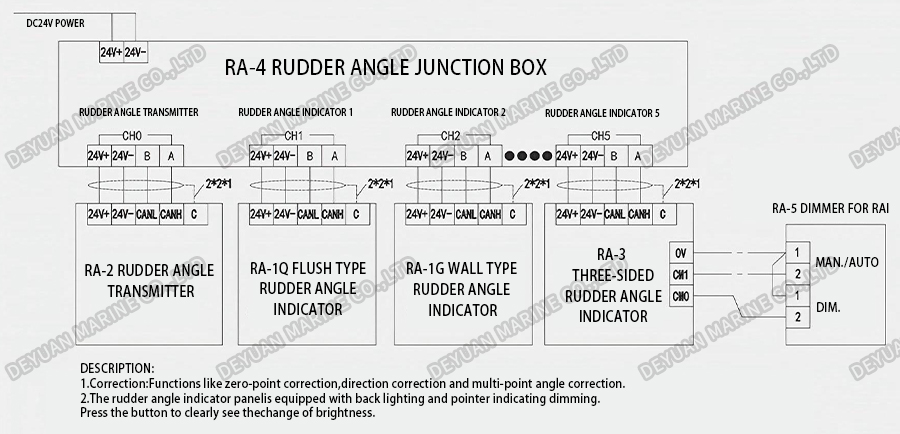

Rudder Angle Indicator Connection Diagram
