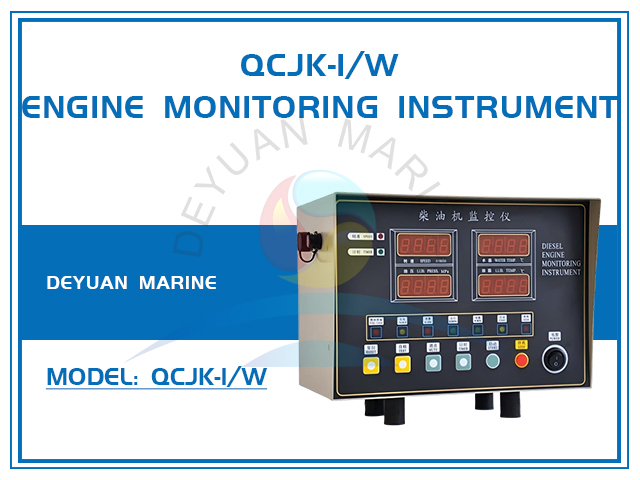

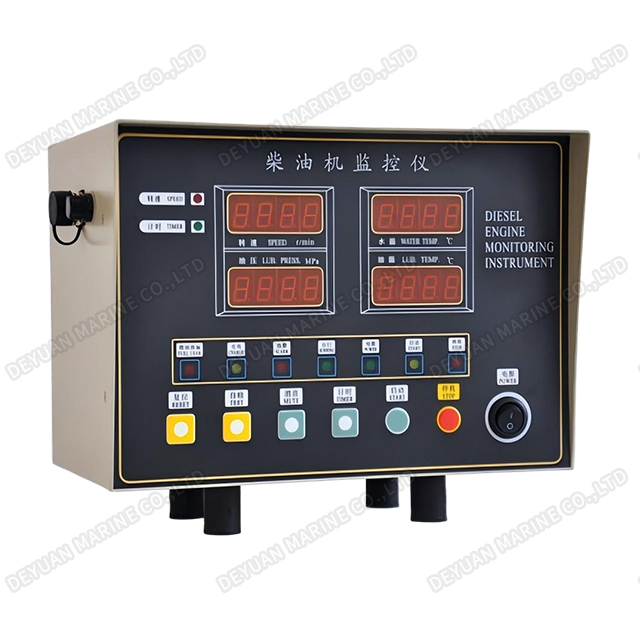

QCJK-I/W Diesel Engine Monitoring Instrument

QCJK-I/W Diesel Engine Monitoring Instrument

A. Product Overview

QCJK-I/W series diesel engine monitor is a CPU electronic measurement and control system for fully automatic control of diesel engines and generator sets. It can accurately detect and display diesel engine speed, oil pressure, water temperature, and oil temperature. It can also monitor the above measured parameters in a timely manner according to user settings, and send out sound alarm, light alarm, remote alarm and other signals. If the shutdown function is set, if the parameter exceeds the shutdown value, a shutdown signal will be sent to control the electric actuator to cut off the fuel oil circuit, automatically control the diesel engine to stop in an emergency, and protect the diesel engine to the maximum extent. At the same time, the corresponding remote display can be optionally equipped to realize remote monitoring (control) of diesel engine operating parameters.

It has the advantages of advanced design, small size, high measurement accuracy, reliable operation, digital display, easy operation and installation. It can be used for various types of diesel engines such as ships and land-based power stations. It is a new generation of electronic instrument system that realizes the mechatronics of diesel engine products and a replacement product for diesel engine pointer instruments.

The design of this product meets the requirements of the CCS specification of China Classification Society.

B. Product Features

Modularized functional configuration, integrated product structure;

CPU digital control, reliable operation;

Digital display of diesel engine parameters, integrating monitoring, measurement and control;

Easy to install and use, high cost performance;

Remote monitoring, measurement and control of operating parameters (need to be equipped with corresponding remote display);

Resistant to vibration, moisture, salt spray and high and low temperature, anti-interference;

Accumulated diesel engine operation time;

Automatic zeroing of pressure zero point;

Automatic alarm and stop when diesel engine works abnormally.

C. Main technical parameters

3.1 Environmental technical parameters

Temperature: +5℃—+55℃

Humidity: 95%

Vibration: 13.2—100Hz, acceleration amplitude: 39.0m/s²

3.2 Power supply voltage range

DC24V+30%—25%

3.3 Housing protection level

IP44

3.4 Measurement range and accuracy

1 Measurement items Measurement range Measurement type Measurement error

2 Speed 1~5000r/min Magnetic resistance pulse type ≤±1r/min Speed measuring teeth are 60 teeth

3 Oil pressure 0~1.0Mpa Imported

Sensor 1.5 level

4 Oil temperature 0~120℃ Copper thermal resistor (division number: Cu50) 1.5 level

5 Cooling water temperature 0~120℃ Copper thermal resistor (division number: Cu50) 1.5 level

6 Running cumulative hours 1~9999h Digital timing ≤0.5h

D. Product Function

1. Protection Function

When the diesel engine's operating condition exceeds the limit, the monitor will send out intermittent sound and light alarm signals. When the diesel engine's operating condition returns to normal, the alarm signal disappears automatically, and the sound alarm can be manually eliminated by the "mute" button on the panel. At the same time, the flash signal turns to flat light. When the operating condition reaches the stop setting value, the monitor controls the actuator to stop automatically.
