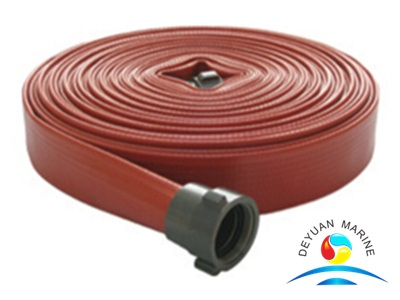

PVC Double Coating Hose
Features:
Wear resistance, impact resistant, easy cleaning, long service life.
Color:
Color is yellow or brown, or according to the customer request custom color.
Standard:
GB6246,EN14540,UNI9487or according to customer's requirement standard.
| Diameter | Working Pressure | Bursting Pressure | Standard Length |
| Inch | mm | Bar | Mpa | Psi | Bar | Mpa | Psi | 10M up to 40M |
| 1-1/4" | 32 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 1-1/2" | 38 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 1-3/4" | 45 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 2" | 52 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 2-1/2" | 64 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 2-3/4" | 70 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 3" | 75 | 8-25 | 0.8-2.5 | 120-365 | 24-75 | 2.4-7.5 | 350-1090 |
| 4" | 102 | 8-16 | 0.8-1.6 | 120-235 | 24-48 | 2.4-4.8 | 350-700 |
| 5" | 127 | 8-13 | 0.8-1.3 | 120-190 | 24-39 | 2.4-3.9 | 350-570 |
| 6" | 152 | 8-13 | 0.8-1.3 | 120-190 | 24-39 | 2.4-3.9 | 350-570 |
More PVC double coating hose can be offered,pls contact us for more details.
