Movable High Pressure Water Mist System

  • Deyuan Marine

Product Description

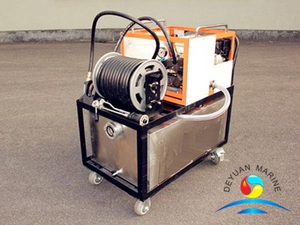

Movable High Pressure Water Mist System
Items Unit Paremeter Notes
Model
XQY15-A Atandard configuration
Appearance dimension mm 1100×410×500 On clients’ requirement
Model of engine
GX390 /
Power KW 13HP/3600rpm/Min /
Starting way
Handle and Electric start Or handle start
Pump
UDOR
Model of pump
TML2020 /
Maximum flow L/Min 23 /
Nominal pressure Bar 150-200 /
Rotate speed rpm 1725 /
Kind of drive
Belt pulley
Speed ratio
2:01
The distance of straight spray M 15-20 /
The distance of spray M 10 /
Ring coil length M 25 Or 35M
Ring coil diameter mm Φ20.5
Spray gun length mm 700 Or 900
Hydrojet
Water or foam
Gross weight KG 110
