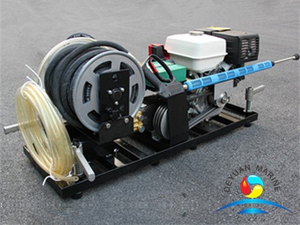

Fire Fighting Skid Unit

  • Deyuan Marine

Product Description

Fire Fighting Skid Unit
Items Unit Parameter Notes
Model
XFY18/4-A Standard configuration
Appearance dimension mm 670×640×480 On clients’ requirement
Model of engine
GX160 /
Power KW 5.5HP/3600rpm/Min /
Starting way
Handle and Electric start Or handle start
Pump
BROOWE Or other
Model of pump
FM430 /
Maximum flow L/Min 40 /
Nominal pressure Bar 40 /
Rotate speed rpm 650 /
Kind of drive
Belt pulley
Speed ratio
6:01
The distance of straight spray M 15-20 Water
The distance of spray M 12 Foam
Ring coil length M 25 Or 35M
Ring coil diameter mm Φ20.5
Spray gun length mm 350 Or 500
Liquid
Water/ foam 1%、3%
Gross weight KG 58
