Product Description

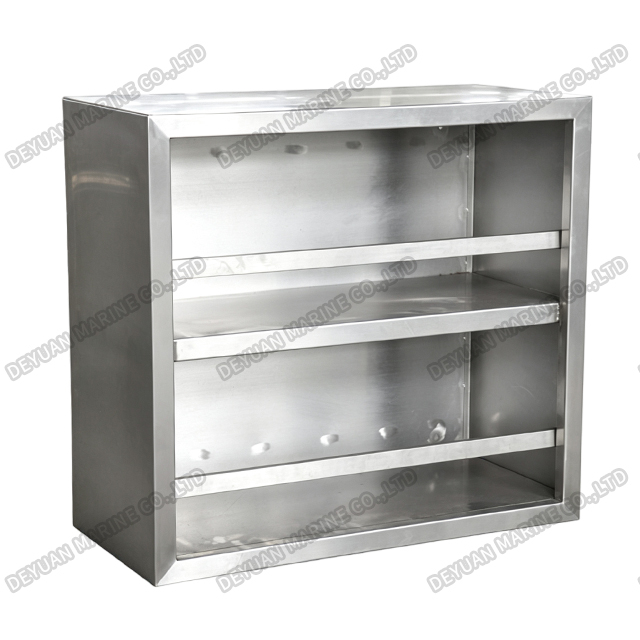

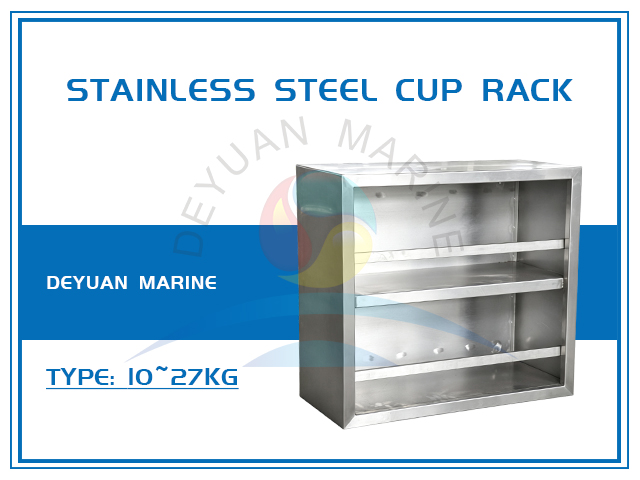

Marine Stainless Steel Cup Rack
Product Introduction:
Designed to keep drinkware, mugs, pots, and utensils neatly organised in the confined and demanding environments of ships, offshore platforms, and naval vessels, our Marine Stainless Steel Cup Rack offers a hygienic, space‑efficient, and durable storage solution. Whether installed in galleys, mess rooms, bars, or pantries, this rack ensures that cups and cookware are always within easy reach while remaining securely stowed during vessel motion.
Manufactured from premium SUS304 stainless steel with a brushed/hairline finish, the rack provides exceptional resistance to salt‑spray corrosion, moisture, and frequent cleaning with detergents. The smooth, non‑porous surface inhibits bacterial growth and is quick to wipe down – meeting the highest food‑safety standards for marine catering areas.
The product line covers a wide range of configurations to suit different storage needs and available wall spaces. Features include:
*Enclosed models with hinged doors to protect contents from dust, grease, and splashes, ideal for fine china or glassware.
*Open‑tier designs without doors for instant access, available in single‑ or double‑tier versions.
*Integrated cup hooks (stainless steel) for hanging mugs by their handles, maximising shelf space and preventing clattering.
*Pot hooks for suspending saucepans, ladles, or other cookware, adding versatility to the galley.
All racks are constructed with robust welded frames and reinforced mounting brackets for secure wall attachment. Shelves are angled slightly (optional) to allow water drainage, and the edges are rounded for safety. Adjustable shelf heights can be provided upon request.
Specification Dimensions:
| Model | Specification(mm) | Characteristic | Weight (kg) | ||
| L | W | H | |||
| A90 | 900 | 300 | 600 | Hinged door,two tiers | 27 |
| B70 | 700 | 250 | 250 | Sigle tier without doors | 9 |
| C70 | 700 | 250 | 500 | Two tiers without doors | 16 |
| D60 | 600 | 300 | 600 | Two tiers without doors | 16 |
| E90 | 900 | 300 | 600 | Hinged door,two tiers,with cup hooks | 27 |
| F70 | 700 | 250 | 250 | Single tier without doors,with cup hooks | 10 |
| G70 | 700 | 250 | 500 | Two tiers without doors,with cup hooks | 17 |
| H60 | 600 | 300 | 600 | Two tiers without doors,with cup hooks | 17 |
| I60 | 700 | 300 | 700 | With pot hooks | 15 |
Beyond these standard sizes, we offer full customisation – length, depth, height, number of tiers, hook placement, and door styles can be tailored to your specific bulkhead dimensions and storage requirements. Additional accessories such as drip trays, towel rails, or labelling holders are also available.
Installation is simple and secure using the supplied heavy‑duty wall brackets or flush‑mounting rails, with adjustable fixing points to accommodate uneven bulkheads. The rack’s low‑profile design keeps aisles clear while maximising vertical storage – a critical advantage in tight shipboard spaces.
With its combination of robust stainless steel construction, versatile configurations, and marine‑grade corrosion resistance, our cup rack not only enhances galley organisation but also reduces breakage and improves crew efficiency. It is the dependable choice for newbuilds, retrofits, and offshore facilities alike.
