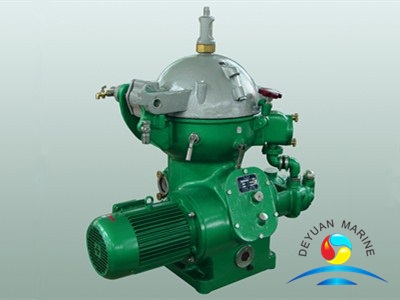

Marine Oil Separator

Marine oil separator is designed according the GB/T5745 “Marine Disc Separato,used to remove water and mechanical impurities from diesel oil, lubricating oil and other mineral oil.

We divide it into three tyes based on different way of discharging,the first one is manual discharging,DR type,the second one is automatic fully discharging,DH type,the third one is partial discharging,DB type.

Marine type oil separator come with CCS certificate.

Technical Parameter:

Type	Model	Bowl No.	Drum Speed(r/min)	Rated Capacity(L/H)≥	motor power/KW≤	Application	Discharge
DR type	KYDR203	3	9000~6800	1500	3	distillate fuel oil. lubricating oil	manual  discharge
	KYDR205	5	7000~6300	3000	5.5
	KYDR207	7	6500~5500	4000	7.5
	KYDR209	9	6000~5000	5000	11
	KYDR211	11	5500~4800	8000	18.5
DH type	KYDH203	3	9000~7500	1500	3	distillate fuel oil.  residual fuel oil. lubricating oil	automatic fully  discharge
	KYDH205	5	7000~6300	3000	5.5
	KYDH207	7	6500~5500	4000	7.5
	KYDH209	9	6000~5000	5000	11
	KYDH211	11	5500~4800	8000	18.5
	KYDH213	13	5000~4500	10000	22
	KYDH215	15	5200~4500	12000	22
DB Type	KYDB203	3	9000~7500	1650	3	distillate fuel oil,  residual fuel oil,	partial discharge
	KYDB205	5	7000~6300	3300	5.5
	KYDB207	7	6500~5500	4400	7.5	lubricating oil
	KYDB209	9	6000~5000	5500	11
	KYDB211	11	5500~4800	8800	18.5
	KYDB213	13	5000~4500	10000	22
	KYDB215	15	5200~4500	12000	22
