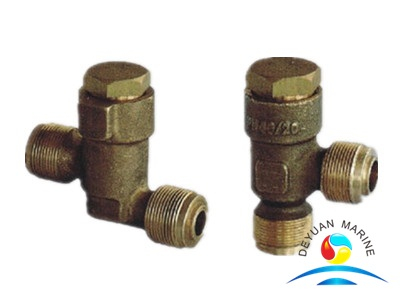

Marine Low Pressure Male Thread Bronze Globe Valve

  • DEYUAN MARINE

Product Description

Marine Low Pressure Male Thread Bronze Globe Valve:
We can offer marine gate valve,marine globe valve,marine butterfly valve,marine check valve etc
globe valve standard:CB/T,GB/T,,JIS ,DIN ,API、ANSI,BS etc
Nominal pressure(Mpa) Nominal Diameter(mm) Applicable medium
1.6 6~32 Sea water,fresh water,lubricanting oil,fuel oil,t≤250℃ steam
Parts name material

name marks
Body/cover/disc Cast tin bronze ZCuSn10Zn2
Stem Stainless steel DN6,10:2Cr13

Aluminum bronze DN15~32,CuAl9Mn2
DN6,10Dimensions    globe valve
DN(mm) globe valve globe valve     Thread joint Hand
wheel
Lift Range Weight(kg)
Structure dimension
L H≈ H1 m A B
A type B A B B D D1 D2 L0 L1 D0 S


type type type type
6 78 34 90 77 32 M18*1.5 15.8 9 13 2 50 6 5 0.34 0.28
10 80 34 90 78 32 M22*1.5 19.8 13 14 2 50 6 5 0.4 0.32
DN15~32 dimensions
15 95 46 100 91 40 M30*2 27 19 19 3 50 6 5 0.6 0.53
20 110 49 112 100 44 M36*2 33 24 19 3 65 7 6 0.98 0.96
25 125 53 128 113 48 M42*2 39 29 20 3 80 8 8 1.38 1.33
32 145 58 136 121 56 M48*2 45 36 20 3 80 8 9 1.6 1.5
More  Marine low pressure male thread bronze globe valve can be offered,pls contact us for more details
