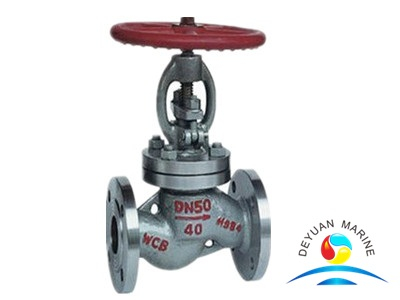

Marine Liquefied Gas Globe Valve

Marine Liquefied Gas Globe Valve:

We can offer marine gate valve,marine globe valve,marine butterfly valve,marine check valve etc

Product standard:CB/T,GB/T,,JIS ,DIN ,API、ANSI,BS etc

Technical Details:

DN(mm)	Dimensions(mm)
	L	D	D1	D2	b	f	H	H1	D0	Z-φd
15	130	95	65	45	16	2	252	194	120	4-φ14
20	150	105	75	55	16	2	270	200	120	4-φ14
25	160	115	85	65	16	2	310	235	140	4-φ14
32	180	135	100	78	18	2	322	260	160	4-φ18
40	200	145	110	85	18	3	360	345	180	4-φ18
50	230	160	125	100	20	3	408	370	200	4-φ18
65	290	180	145	120	22	3	435	420	240	8-φ18
80	310	195	160	135	22	3	475	455	280	8-φ18
100	350	230	190	160	24	3	525	495	320	8-φ18
125	400	270	220	188	28	3	600	570	360	8-φ25
150	480	300	250	218	30	3	615	586	400	8-φ25
200	600	360	310	275	34	3	720	635	450	12φ25
250	730	425	370	332	36	3	862	710	500	12-φ30
300	850	485	430	390	40	4	935	790	500	16-φ34
