Marine Diesel Engine L Drive Tunnel Thruster for Ship

Brand: Deyuan Marine
Drive: Engine;Electric;Hydraulic
Type: L Drive
Rotating speed: 870/970/1170/1480 rpm
Input power: 45~1250KW
Propeller dia.: 510~2250mm
Certificate: ABS,DNV,BV,LR,GL,RINA,BKI, etc

Product Description

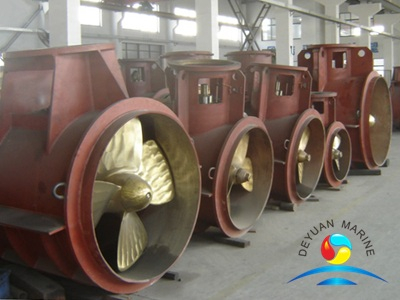

L-Drive Tunnel Thruster
*Applied to vanous self-propulsion ships.
*Side thruster is of L type drive.which can be mounted vertically or horizontally.
*L type dnve connects with prime mover directly,and driving force transmits to rudder propeller through a pair umbrellas which can be controlled to change the propulsion dimctJons.
Type Input rotating speed Input power Frequency Thrust Dia of propeller
(rpm) (kw) (hz) (kg.f) (mm)
CFTT-110 1480 45 / 820 510
1470 63 50 960
1170 50 60 806
970 40 50 690
CFTT-120 1470 125 50 1785 650
1170 100 60 1480
970 85 50 1325
CFTT-134 1470 200 50 2850 820
1170 200 60 2850
970 170 50 2500
CFTT-140 1770 350 60 4790 1040
1470 350 50 4790
1170 280 60 4030
CFTT-210 1470 350 50 5100 1150
1170 280 60 4280
970 230 50 3720
CFTT-220 1770 550 60 7340 1300
1470 550 50 7340
1170 400 60 6730
CFTT-230 1470 550 50 8570 1560
1170 450 60 7440
970 375 50 6420
CFTT-240 1470 900 50 12750 1800
1170 725 60 11220
970 600 50 9690
CFTT-310 1170 1250 60 18670 2250
970 1000 50 15810
870 900 60 13770

More L-drive tunnel thruster can be offered,pls contact us for more details.
