High Quality Marine Electric Driven Bow Thruster With ABS

Place of Origin: China (Mainland)
Propeller Diameter(mm): 700-3000
Max Power(Kw):120-3000
Tunnel length(mm):1000-3300
Tunnel thickness(mm):10-30
Condition: New
Customized: Accept
Transport Package: Export standard
Certificate: CCS, BV, ABS
  • Deyuan Marine

Availability:

Product Description

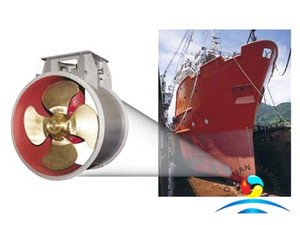

Bow Thruster

*Suitable for various kind of vessel; Can be drived by diesel engine, electrical motor.

*Optimized combination of diameter-rotate speed of propeller, that improve propulsion efficiency; in the same thrust force we have smaller diameter, improve the ratio of utilization of cabin;
*Gear and bearing have high strength and long longevity, and dipped into oil to got better lubrication and cooling effect, which improving the reliability of TP;
*Skew blade and large disk ratio, reduce vibration and improve cavitation performance;
*Underwater structure are optimized so that it have rational construction, which convenient for maintenance and repairing.
*Tail shaft sealing are enough reliable sealing, meet the strict requirements of anti-pollution law of sea and ocean environment.
Model Max Power Propeller diameter Motor Hz Output rpm Tunnel length Tunnel thickness Propeller type
MTT70 120 700 50 781 1000 10 FPP
60 937
MTT90 230 900 50 657 1200 10 FPP
60 789
MTT110 335 1100 50 465 1400 15 FPP, CPP
60 556
MTT130 480 1300 50 390 1500 15 FPP, CPP
60 467
MTT165 770 1650 50 312 1820 15 FPP, CPP
60 374
MTT185 990 1850 50 271 2050 20 FPP, CPP
60 325
MTT200 1180 2000 50 298 2150 20 FPP, CPP
60 236
MTT225 1430 2250 50 219 2350 25 FPP, CPP
60 267
MTT245 1980 2450 50 206 2650 25 FPP, CPP
60 245
MTT265 2250 2650 50 209 2900 25 FPP, CPP
60 199
MTT285 2680 2850 50 216 3100 30 CPP
60 193
MTT300 3000 3000 50 164 3300 30 CPP
60 197

More bow thruster can be offered,pls contact us for more details.
