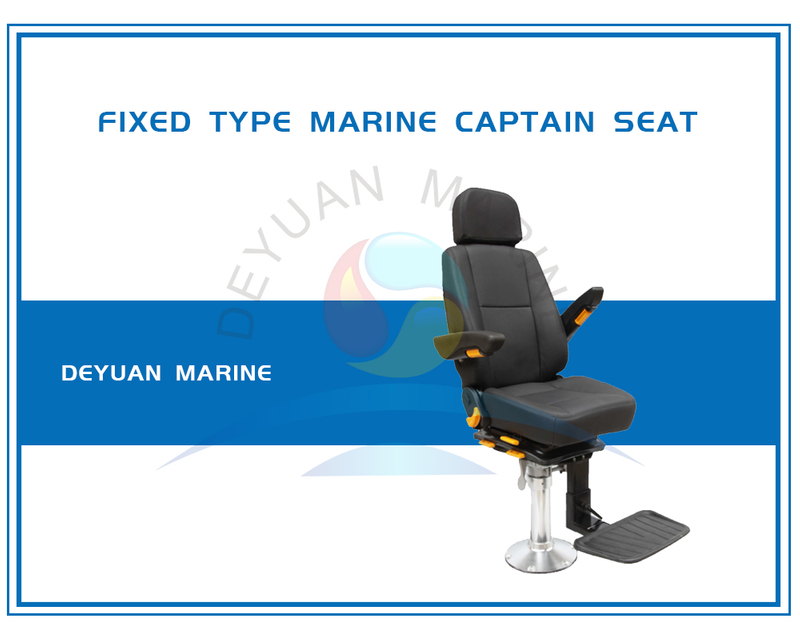

Marine Captain Seat for Cab

Place of Origin: China
Model: TR-002
Color: Customized
Material: Leather Skin
Rotation: 360 degrees
Foot pedal height: adjustable / folding
  • TR-002

  • Deyuan marine

Availability:

Product Description

Marine Captain Seat for Cab


Marine Captain seat has the characteristics of multi-function and high performance, and all the design is based on the requirements of ergonomics and high technology; when driving the ship, it is not only fully functional, flexible and durable.


Material  :
1. Slide rail and positioning base uses the high strength aluminum alloy, inside and outside decorative mosaic made of stainless steel;
2. Lifting column with aluminum alloy ,steel , stainless steel synthesis;
3. The seat lifting and tilting, move back and forth, back angle adjusting are used in steel structure;
4. The seat back and the seat cushion adopts the steel inner core and PU cold foam forming disposable sponge synthesis,outsourcing leather or cloth;
5. Pedal steel plate inner core and environmentally friendly rubber synthetic;
6. Pneumatic lifting core components pneumatic bar the use of German imports of Stabilus;

Function data :
 1.Upper part of the seat can be moved back and forth of120mm,height adjustment 60mm, seat inclination
angle range of  ± 12 ° ;

2. Seat backrest with adjustable angle of 85 ° -150 ° , the headrest adjusted up and down 50mm, handrest multi-point positioning control;
3. The seat of pneumatic lifting regulating range 0-150mm ;
4. The seat can rotate 360 ° and locked ,4-point positioning control; 5.Seat rail slide in 0-4000mm mobile,500mm rail width and depth 28mm
6. Seat pedal can rotate 90 ° and regression, upper and lower position adjusting range of 0-50mm;7.Seat can bear more than 150FT.LB torsion, reached AD grade standard;


TR002 Marine Pilot Seat Features:
1. Ergonomic design;
2. Seat can move in high strength double-slide rail;
3. Adjustable backrest and headrest;
4. Seat height may be angle adjusted;
5. Seats can be moved back and forth;
6. Folding / angle-adjustable comfortable seat armrest;
7. Seat can rotated 360 degrees, multi-point positioning;
8. Foot pedal height adjustable / folding;
9. Column can be vertically lifting;
