Boat Captains Chairs

Place of Origin: China
Model: TR-003
Color: Customized
Material: Leather Skin
Rotation: 360 degrees
Foot pedal height: adjustable / folding
  • TR-003

  • Deyuan marine

Availability:

Product Description

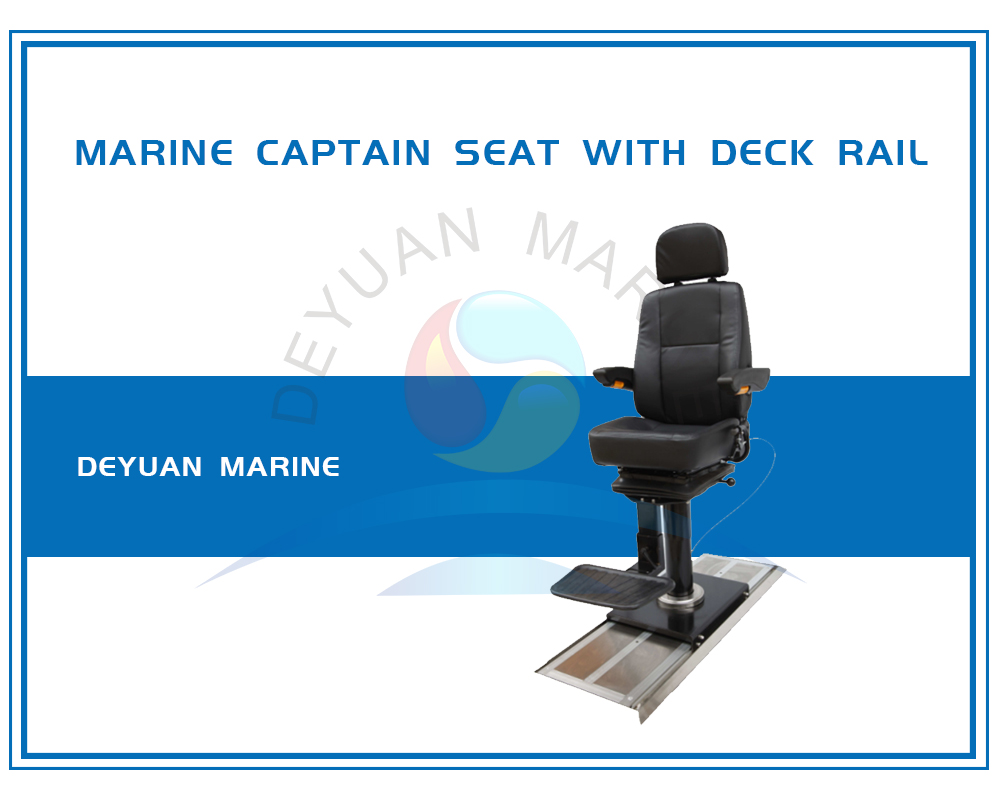

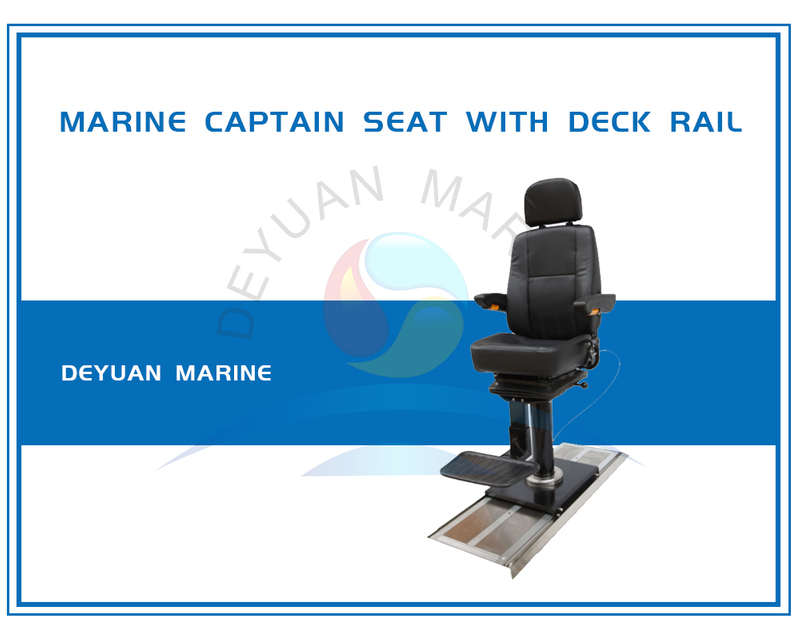

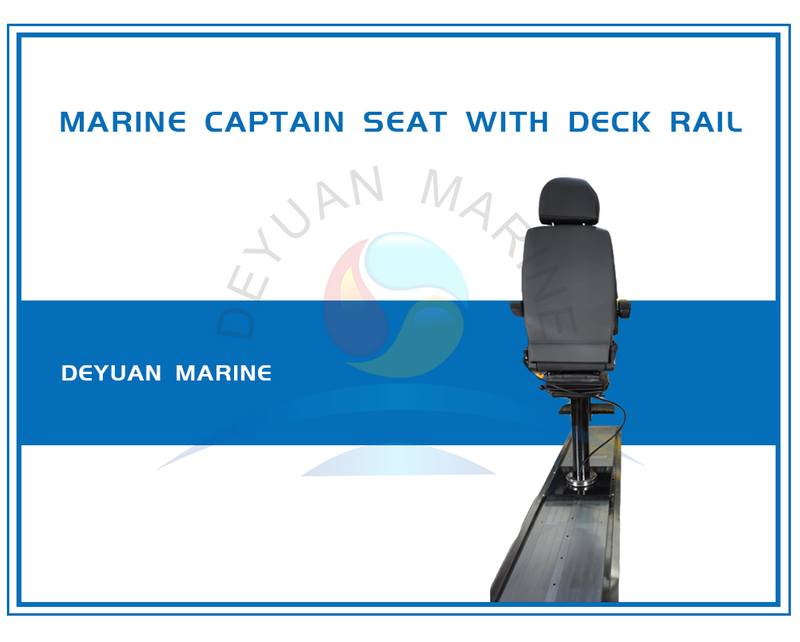

Boat Captains Chairs


Cab Marine Captain Seat:
Material  :
 1.Slide rail and po
sitioning base uses the high strength aluminum alloy, inside and outside decorative mosaic made of stainless steel;
2.lifting column with steel , stainless steel synthesis;
3.The seat lifting and tilting, move back and forth, back angle adjusting are used in steel structure;
4. The seat back and the seat cushion adopts the steel inner core and PU cold foam forming disposable sponge synthesis, outsourcing leather or
cloth;
5.Pedal steel plate inner core and environmentally friendlyrubber synthetic;
6. Pneumatic lifting core components pneumatic bar the use of German imports of Stabilus;


Function data :
 1.Upper part of the seat can be moved back and forth of 120mm,height adjustment 60mm, seat inclination angle range of  ± 12 ° ;
2. Seat backrest with adjustable angle of 85 ° -150 ° , the headrest adjusted up and down 50mm, handrest multi-point positioning control;
3. The seat of pneumatic lifting regulating range 0-120mm ;
4.The seat can rotate 360 ° and locked ,4-point positioning control;
5.Seat rail slide in 0-5000mmmobile,500mm rail width and depth 28mm
6. Seat pedal can rotate 90 ° and regression, upper and lower position adjustingrange of 0-50mm;
7.Seat can bear more than 150FT.LB torsion,reached AD grade standard;



Cab Marine Captain Seat:
1.Ergonomic design;
2. Seat can move in high strength double-slide rail;
3.Adjustable backrest and headrest;
4.Seat height may be angle adjusted;
5.Seats can be moved back and forth;
6.Folding / angle-adjustable comfortable seat armrest;
7.Seat can rotated 360 degrees, multi-point positioning;
8.Foot pedal height adjustable / folding;
9.Column can be vertically lifting;
