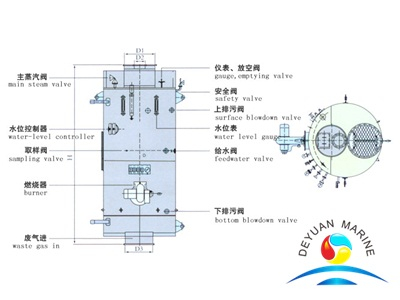

LZY-type Oil-fired and Exhaust Gas Composite Boiler
| type and specs | steam output on oil-firing side(t/h) | heating surface on exhaust gas side(m2) | working pressure(Mpa) | dimensions(mm) |
|
|
|
| weight(kg) |
|
|
|
| H | D | D1 | D2 | D3 |
|
| LZY0.25/42-0.7 | 0.25 | 42 | 0.7 | 3850 | 1424 | 400 | 250 | 400 | 5300 |
| LZY0.3/60-0.7 | 0.3 | 60 | 0.7 | 4050 | 1424 | 450 | 250 | 500 | 5500 |
| LZY0.5/70-0.7 | 0.5 | 70 | 0.7 | 4050 | 1624 | 450 | 250 | 500 | 6800 |
| LZY0.5/90-0.7 | 0.5 | 90 | 0.7 | 4150 | 1724 | 600 | 250 | 600 | 7500 |
| LZY0.5/120-0.7 | 0.5 | 120 | 0.7 | 4300 | 1860 | 700 | 250 | 700 | 9000 |
| LZY0.8/90-0.7 | 0.8 | 90 | 0.7 | 4820 | 1800 | 600 | 300 | 600 | 8500 |
| LZY0.8/140-0.7 | 0.8 | 140 | 0.7 | 4850 | 2024 | 700 | 300 | 700 | 12000 |
| LZY0.9/110-0.7 | 0.9 | 110 | 0.7 | 4820 | 2024 | 700 | 300 | 700 | 11000 |
| LZY1.0/150-0.7 | 1 | 90 | 0.7 | 4820 | 1924 | 600 | 300 | 600 | 9500 |
| LZY2.0/75-0.7 | 2 | 75 | 0.7 | 4950 | 2100 | 450 | 350 | 500 | 12000 |
| LZY1.0/150-0.7 | 1 | 150 | 0.7 | 4750 | 2224 | 700 | 300 | 700 | 13000 |
| LZY1.2/130-0.7 | 1.2 | 130 | 0.7 | 4750 | 2224 | 700 | 300 | 700 | 13000 |
| LZY1.2/180-0.7 | 1.2 | 180 | 0.7 | 5000 | 2500 | 900 | 300 | 900 | 16000 |
| LZY1.6/200-0.7 | 1.6 | 200 | 0.7 | 5000 | 2400 | 900 | 300 | 900 | 18000 |
Note: 1.Dimensions and orientation of boiler are adapted to customer's need. 2.The data in the lable is only for reference and subject to be change without notice. 3.The types in the lable are a part of our products. Please contact us if you need other types.
