LSK-type Vertical Oil-fired Boiler

Lsk-type Vertical Oil-fired Boiler

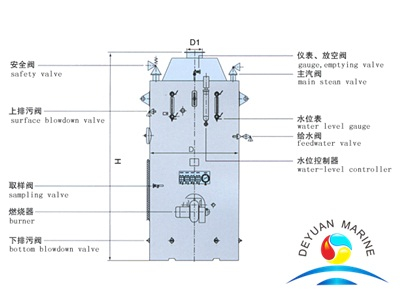

type and specs	rated steam capacity(t/h)	working pressure(Mpa)	dimensions(mm)			weight(kg)
			H	D	D1
LSK0.5-0.7	0.5	0.7	2900	1100	250	2500
LSK0.7-0.7	0.7	0.7	3400	1200	250	2900
LSK1.0-0.7	1	0.7	3800	1250	300	4000
LSK1.5-0.7	1.5	0.7	3700	1530	300	5300
LSK2.0-0.7	2	0.7	4100	1600	350	6200
LSK3.0-0.7	3	0.7	4700	1800	350	9000
LSK4.0-0.7	4	0.7	5100	2000	400	13000
LSK5.0-0.7	5	0.7	5300	2230	500	16000
LSK6.0-0.7	6	0.7	5600	2230	600	18000
LSK8.0-0.7	8	0.7	5900	2450	600	20000
LSK10.0-0.7	10	0.7	6300	2640	700	22000
LSK12.0-0.7	12	0.7	6750	2840	800	24000
LSK16.0-0.7	16	0.7	7000	2840	900	28000
LSK20.0-0.7	20	0.7	7000	3040	1000	34000
LSK25.0-0.7	25	0.7	7200	3240	1100	42000
LSK30.0-0.7	30	0.7	9000	3650	1100	50000

Note:
1.Dimensions and orientation of boiler are adapted to customer's need.
2.The data in the lable is only for reference and subject to be change without notice.
3.The types in the lable are a part of our products. Please contact us if you need other types.
