Product Description

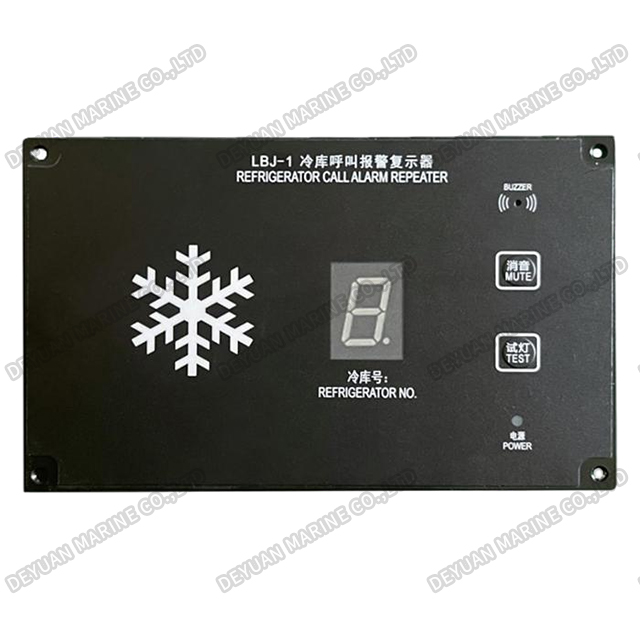

LBJ-1QF Flush Type Refrigerator Call Alarm Repeater
Product Introduction
The Marine Flush Type Refrigerator Call Alarm Repeater is a dedicated remote display and alarm unit designed for centralized bridge or control room monitoring. Engineered for seamless, space-saving integration, its low-profile, flush-mount design installs directly into instrument panels, providing a clean and professional appearance while saving valuable console space.
This repeater receives and displays real-time temperature status from the main alarm controller located near refrigeration units. It features a high-visibility visual indicator (typically an LED beacon) and an optional built-in buzzer, instantly duplicating any alarm condition triggered in the refrigerated spaces. This allows watchkeeping officers on the bridge to be immediately aware of faults without being physically present in the machinery area or galley. Constructed with corrosion-resistant materials to meet rigorous marine environmental standards, it ensures reliable performance and enhances overall vessel safety by providing critical system status at a central command point.

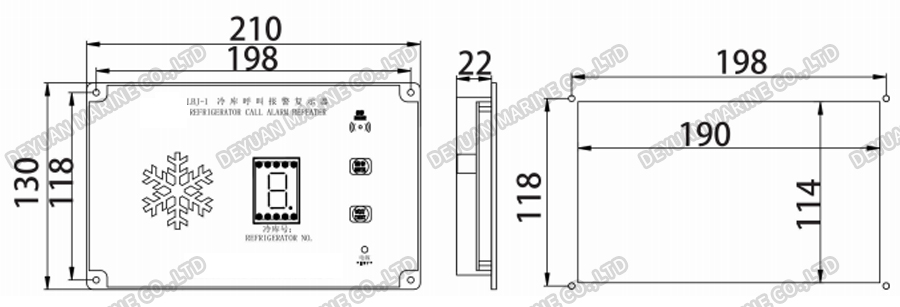

Drawing

Technical Data
| Sound of Call | hi9her than 75dB |
| Power Supply | DC24V(+30%~-25%) |
| Environment Temp | -10~55℃ |
| Humidity | Less than RH95% |
Refrigerator Call Alarm System
Refrigerator Call Alarm System Connection Diagram
