Jumbo Drill Rigs Hydraulic Cylinder

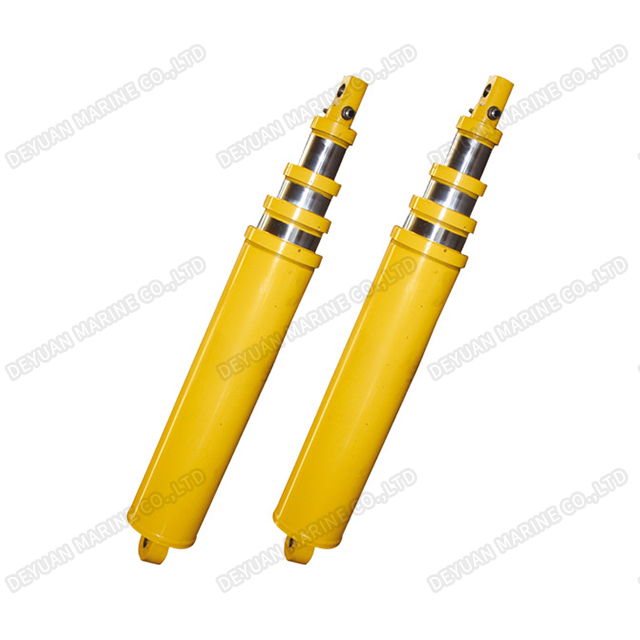

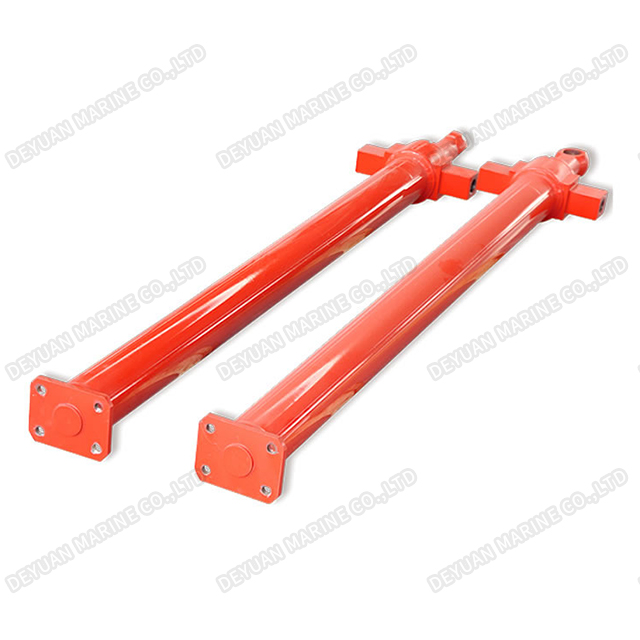

Intelligent Feed Beam Cylinder System for Jumbo Drill Rigs

Power Redefined for Modern Rock Excavation

Engineered as the backbone of automated tunneling systems, our feed beam cylinder integrates intelligent force control with extreme environmental durability. This core actuation component ensures synchronized drilling vector alignment while withstanding the brutal vibration spectrum of high-frequency percussion drilling.

Breakthrough Engineering:

1. 3-axis force feedback synchronization technology.

2. Martensitic stainless steel base with plasma-nitrided sliding surfaces.

3. Dynamic pressure balancing across parallel circuits.

4. Quadruple-redundant position sensing (Magnetostrictive + LVDT).

5. Instantaneous flow compensation up to 120L/min.

6. Compact cross-section design (30% smaller than ISO 6020/2 standards).

Mission-Critical Applications:

*High-altitude mining face development

*Subsea tunnel grout consolidation

*Directional drilling guidance systems

*Arctic permafrost excavation

*Radioactive waste repository construction

Smart Maintenance Advantage:

Our phased replacement design enables individual component renewal without system depressurization. The smart bushing wear indicator provides visual/anomaly alerts through integrated telematics, while the hybrid wiper system extends seal life by 3x in slurry-intensive operations.
