Product Description

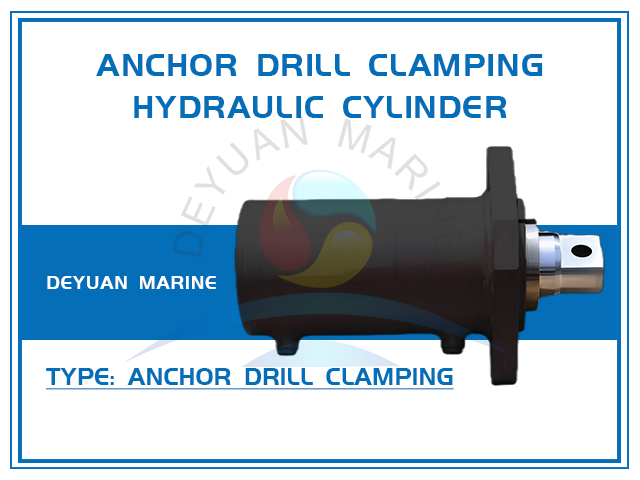

Intelligent Anchor Drill Clamping Hydraulic Cylinder System
Precision Meets Power in Underground Stabilization
Engineered for the rigorous demands of rock bolting and tunnel reinforcement, our anchor drill clamping cylinder revolutionizes hydraulic control in geotechnical operations. Combining multi-stage pressure adaptation with self-centering mechanics, this system ensures zero-slip grip on drill rods even under extreme torsional loads up to 12,000 Nm.
Core Innovations:
*Auto-centering jaw alignment -Patented wedge compensation maintains 0.02mm concentricity.
*Triple-redundant sealing -IP69K-rated against rock slurry ingress.
*Impact absorption chambers – Reduces peak shock loads by 67%.
*Modular cartridge design – Replace wear components in 15min without disassembly.
*IoT-enabled diagnostics – Real-time pressure/temperature telemetry via CANbus.
Performance Benchmarks:
*Sustains 50Hz percussion drilling cycles at 45MPa.
*-25°C to +85°C operational range (MIL-STD-810G certified).
*120° jaw articulation range for multi-angle bolting.
*0.003mm/cycle wear rate in abrasive conditions.
Mission-Ready Applications:
*Coal seam gas drainage hole stabilization.
*TBM segment bolt pre-tensioning.
*Slope anchoring in wet-shotcrete environments.
*Underground repository containment systems.
*Cross-passage reinforcement in metro tunneling.
Smart Maintenance Edge:
Our phased replacement protocol enables targeted component renewal using color-coded wear indicators. The integrated purge valve automatically expels contaminant particles during retraction cycles, extending seal life by 2.8x compared to conventional designs.
