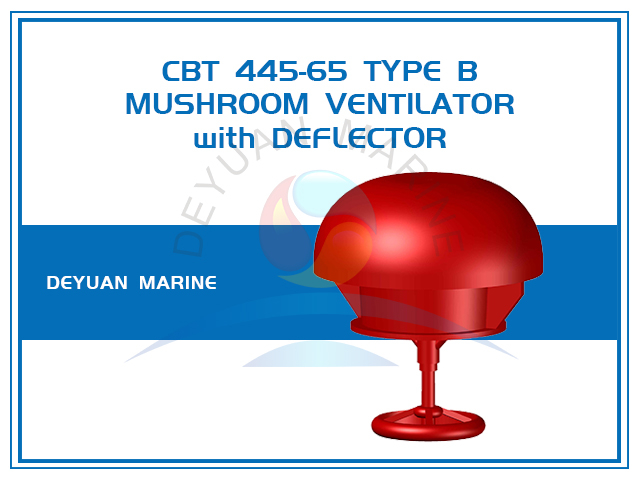

Internally Operation Mushroom Ventilators with Deflector Hood CB 455-1965 Type B

Brand: DEYUAN MARINE
Type: Mushroom with Deflctor
Standard: CB/T 445-65
Model: Type B
Purpose: Tanks ventilating
Open type: Internally
Nominal Diameter: 100~600
Material: Carbon steel
Availability:

Product Description

Internally Operation Mushroom Ventilators with Deflector Hood CB 455-1965 Type B


Mushroom with deflcetor serial Ventilators are installed on deck or Ballast water tank and fuel oil tank washing sewage, etc for natural ventilation.


CB/T 445-1965 Mushroom Ventilation with deflctor hood have two two types different in location of adjusting handwheel, external and internal type, each can reach the purpose of adjusting the opening size. Type B is internally opening and closing model.


Process requirements

1. Surface: should be flat and smooth, without sharp edges, distortion, or skew.

2. Size error:  ±3mm, and the deviation of the verticality is 2/h1000 (h is the height of the ventilator cylinder)

3. The welding surface: free of cracks, slag inclusions, burn-through, and unfused defects.

4. The opening of the weather-tight cover of the fungus-shaped ventilator for ships should be flexible, and the movable part should be coated with neutral lubricating grease.

5. Derusting: the internal and external surfaces of the steel parts of the fungus-shaped ventilating cap should reach the Sa2 level or St2 level specified in GB/T8923, and then two antirust primers.

CB 445 Type B MushroomHood Ventilator with deflector_00

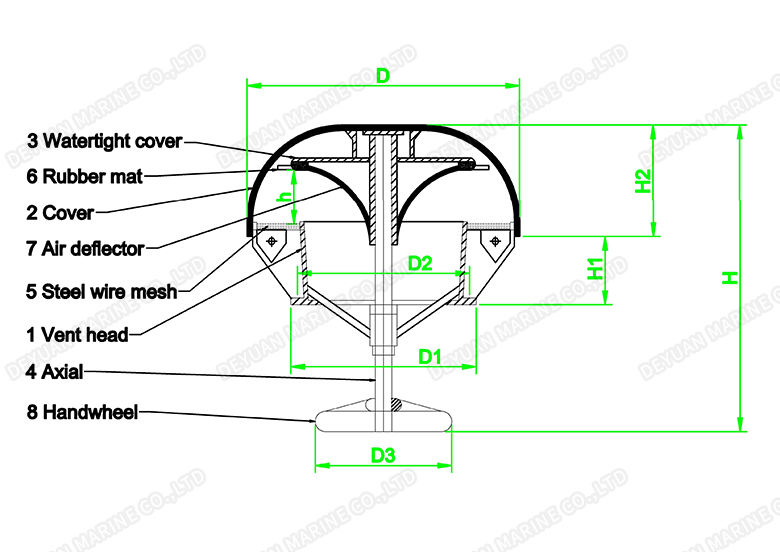

Structure descriptions:

1. Vent head

2. Cover

3. Watertight cover

4. Axial

6. Rubber mat

7. Deflctor

8. Handwheel

9. Sleeve


Type B CB/T 445-1965 Models:

Model DN D D1 D2 D3 H H1 H2 h Weight(kgs)
B 100 200 156 136 100 225 50 132 40 3.27

150 300 206 180 140 288 66 176 60 5.87

200 400 256 236 140 333 90 220 80 9.77

250 500 306 286 160 374 100 261 100 15

300 600 356 336 160 420 120 300 120 21

350 700 406 286 200 490 130 336 140 25.88

400 780 456 436 200 526 130 360 160 37.7

450 880 510 492 225 570 140 385 175 48.4

500 980 560 542 250 656 170 443 200 59

600 1160 660 642 250 745 180 503 240 71.6
