Product Description

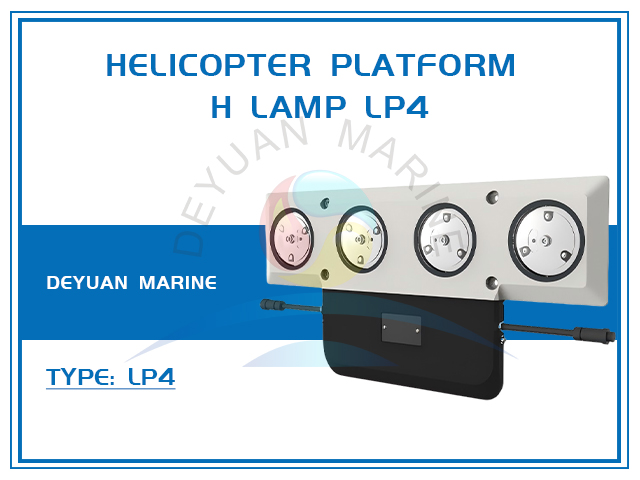

Helicopter platform H lamp LP4
Product Introduction
The Helideck Perimeter Light LP4 is a high-performance aviation-grade lighting solution designed to define and illuminate helicopter landing area boundaries for enhanced operational safety. This "H" type configuration light meets international aviation standards and is engineered for reliability in the most demanding offshore and onshore environments.
Key Features
Durable Construction
Advanced LED Technology
Environmental Resilience
Smart Control System
Maintenance-Friendly Design
Regulatory Compliance
Performance ParametersApplicaiton
| Rated Voltage | DC24V |
| Rated power | <2W |
| Lightning surge | GD22-2015L-L0.5kV |
| GD22-2015 L-G 1kV | |
| Electrostatic discharge | GD22-2015 air discharge 8kV |
| GD22-2015 contact discharge 6kV | |
| EMC | GD22-2015 |
| Lamp source | LED |
| Intensity | 20cd~45cd |
| Light color | Green/Yellow |
| Work mode | Steady burning |
| Horizon beam angle | 360° |
| Vertical beam angle | 90° |
| Operating temperature | Ta-50℃~+60℃ |
| Humidity | 10%~95%RH |
| IP rate | IP69 |
Applicaiton
*Apply to the offshore helideck for cicle H light(including moving platform and permanent platform.
*Suitable for offshore oil platform,and any other hazard-ours areas or vessel's helideck.Certified to explosive gas atmosphere zone 1 and zone 2 area.
*Certified to explosive gas atmosphere IIA /IIB/IIC area.Suitable for T1-T6 temperature class.
