Product Description

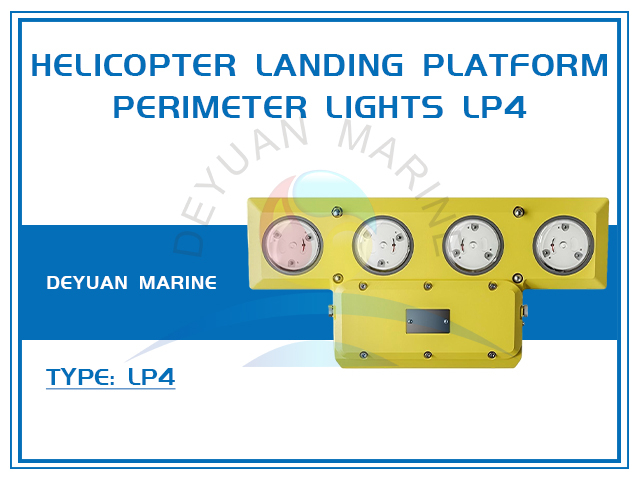

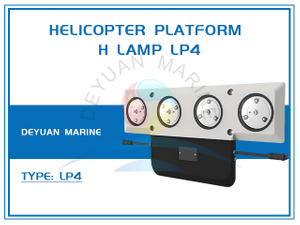

Helicopter landing platform perimeter lights LP4
Product Introduction
The LP4 Helideck Perimeter Light is a next-generation, high-performance aviation-grade lighting solution engineered to define the safe operational boundaries of helicopter landing decks on offshore platforms, vessels, and onshore helipads. Designed to exceed stringent international standards including ICAO, IMO, and CAP 437, the LP4 ensures optimal visibility under the most challenging environmental conditions.
It features exceptional resistance to saltwater corrosion, UV radiation, extreme temperatures, and mechanical impact. The fixture's core is an advanced high-intensity LED array, engineered to deliver a brilliant, omnidirectional red light with perfectly uniform intensity, eliminating dark spots and ensuring clear definition of the helideck perimeter from all approach angles.
Performance ParametersApplicaiton
| Rated Voltage | DC24V |
| Rated power | <2W |
| Lightning surge | GD22-2015L-L0.5kV |
| GD22-2015 L-G 1kV | |
| Electrostatic discharge | GD22-2015 air discharge 8kV |
| GD22-2015 contact discharge 6kV | |
| EMC | GD22-2015 |
| Lamp source | LED |
| Intensity | 20cd~45cd |
| Light color | Green/Yellow |
| Work mode | Steady burning |
| Horizon beam angle | 360° |
| Vertical beam angle | 90° |
| Operating temperature | Ta-50℃~+60℃ |
| Humidity | 10%~95%RH |
| IP rate | IP69 |
Applicaiton

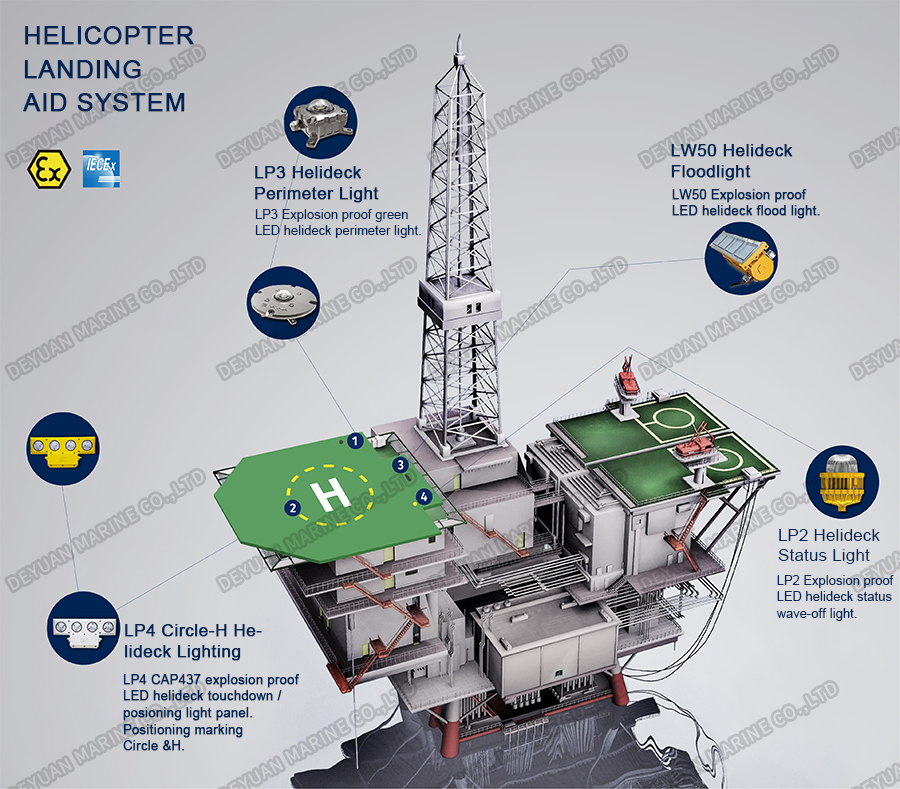

*Apply to the offshore helideck for cicle H light(including moving platform and permanent platform.
*Suitable for offshore oil platform,and any other hazard-ours areas or vessel's helideck.Certified to explosive gas atmosphere zone 1 and zone 2 area.
*Certified to explosive gas atmosphere IIA /IIB/IIC area.Suitable for T1-T6 temperature class.
